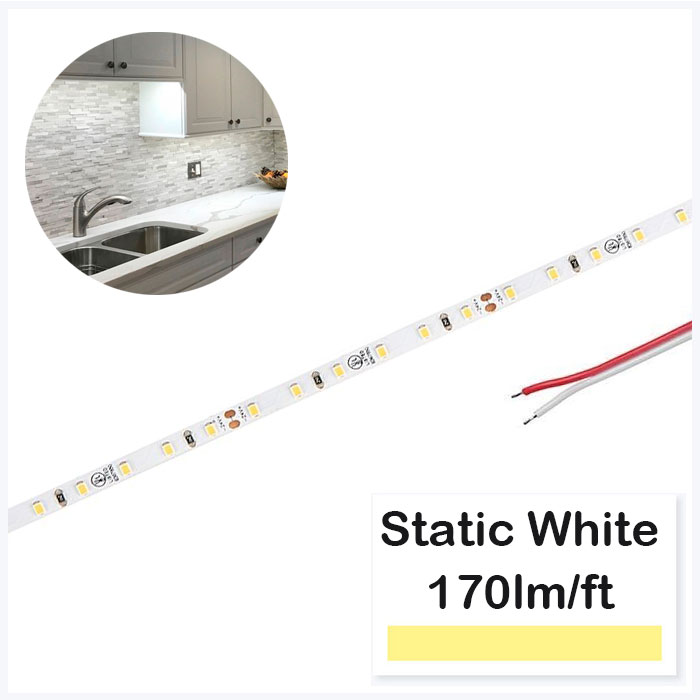

    5m White LED Strip Light - Lux Series LED Tape Light - Ultra Narrow - 24V - IP20

      (7 Reviews) | Write a review
    SKU: LX-IP20-90CRI-5m-Narrow

    Please Choose:



    Discontinued
    Starting at: $56.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,23 and Fri,Nov,29. order with 2days,9hrs and 31 min.

    Unique to the Lux series, this ultra-narrow LED strip light fits any available strip channel, and is slim enough for installation in tight, low-profile spaces. A 90+ CRI rating for high-quality, precise color rendering. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.

    Product Details:

    • Latest 2216 SMD LEDs ensure highest efficacy with a slim profile
    • 90+ CRI rating ensures vibrant, natural-looking color tones
    • 36 LEDs/ft
    • Strip width measures 4mm
    • 24 VDC input
    • Maximum run of 10m
    • Lifetime exceeds 50000 hours
    • CE certified and UL listed
    • Lifetime warranty

    Specifications
    Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Brightness:    170 lm/ft (558 lm/m)
    Certifications/Compliance:    CE, UL Listed
    CRI:    90+
    Current Draw:     1.8 A
    Current Draw per Foot:    92mA
    Dimmable:    Yes
    Efficacy:    77 lm/W
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    Finish:    White
    Input Connection Type:    Pigtail
    IP Rating:     IP20
    LED Beam Angle:     120°
    LED Density:    36 LEDs/ft
    LED Type:    2216 SMD
    LEDs per Segment:    6
    Length:    16.4ft (5m)
    Max Run (Class 2):     Up to 32.8ft (10m)
    Minimum Cut Length:    50mm (1.97in)
    Operating Voltage:    24 VDC
    Power Consumption:    36 Watts
    Rated Life (L70):    50000 Hours
    Series:    Lux
    Strip Width:    4mm (0.16in)
    Wattage per Foot:    2.2 W/ft (7.2 W/m)
    Wire Length:    1.7 ft (0.5 m)
