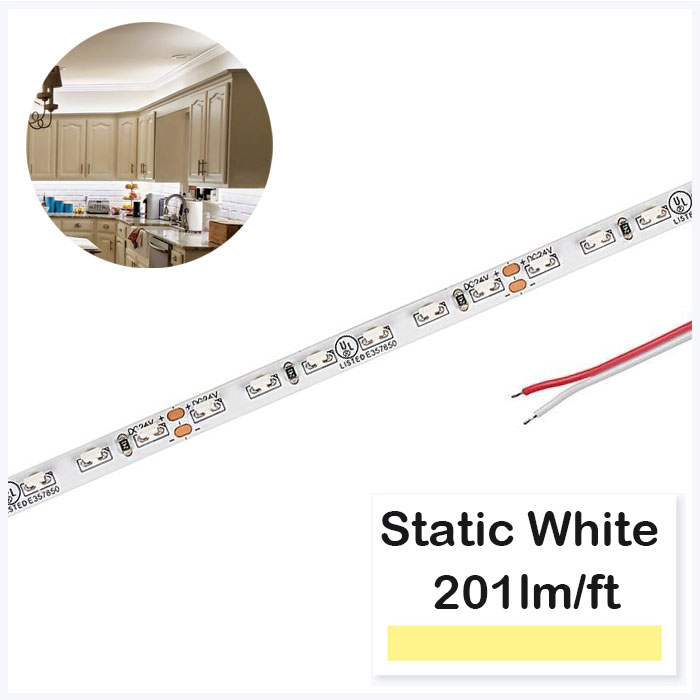

    5m White LED Side Emitting Strip Light - 24V - IP20

      (1 Reviews) | Write a review
    SKU: STN-ASxK80-E6A-05C5M-24V

    Please Choose:



    Discontinued
    Starting at: $89.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    STN series Side Emitting Strip Light is designed to provide visibility and accent for architectural coves, kitchen cabinets, showcases, and more. Beams emit sideways, highting in hard to reach places with out showing the strip. Flexible construction, 3M™ adhesive backing, and field cuttable, this LED tape light has the convenient versatility to improve illumination in any indoor space.

    Product Details:

    • Cuttable in 2” segments
    • Available in 3000K, 4000K, 6500K
    • 24 VDC
    • IP20 rated for indoor conditions
    • 50000 hours L70 lifespan
    • UL Listed
    • Lifetime warranty

    Specifications
    Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Certifications/Compliance:    UL Listed
    CRI:    80+
    Current Draw:     1.5 A
    Current Draw per Foot:     91mA
    Dimmable:    Yes
    Efficacy:    92 lm/W
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    Finish:    White
    Input Connection Typeï¼›    Pigtail
    IP Rating     IP20
    LED Beam Angleï¼›     120°
    LED Density:    36 LEDs/ft
    LED Type:    3014 SMD
    LEDs per Segment:    6
    Length:    16.4ft (5m)
    Max Run (Class 2)     Up to 32.8ft (10m)
    Minimum Cut Length    50mm (1.97in)
    Operating Voltage:   24 VDC
    Power Consumption:    36 Watts
    Rated Life (L70):    50000 Hours
    Strip Width:    5mm (0.20in)
    Wattage per Foot:    2.2 W/ft (7.2 W/m)
