8mm Green LED - 510 nm - 360 Degree Viewing Angle

(0 Reviews) | Write a review

SKU: RL8-G50-360

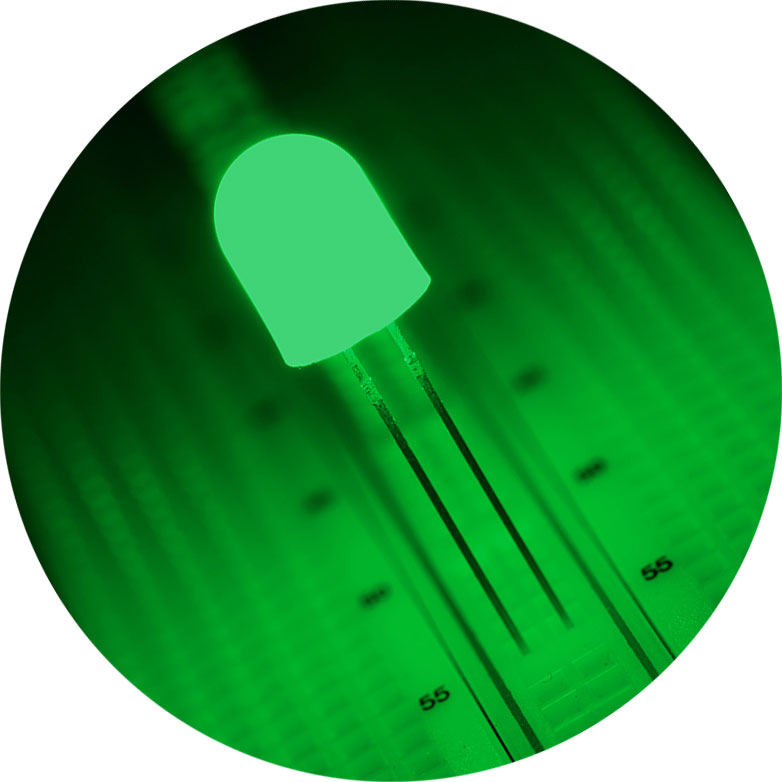

Green 8mm through hole LED. Features 400mcd and 510nm wavelength. This unique LED has a diffuser coating which emits green light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 60mA
Forward Voltage: 3.2V
LED Color: Green
LED Package: 8 mm
Lens: Diffused
Lumen: 5 Lumen
Maximum Forward Voltage: 3.4V
Millicandela: 400mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 100mA
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Total Power Consumption: 0.192 Watts
Viewing Angle: 360 degree
Wavelength: 510 nm
Package Weight: 0.02oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.36" (1cm) x 0.36" (1cm)
