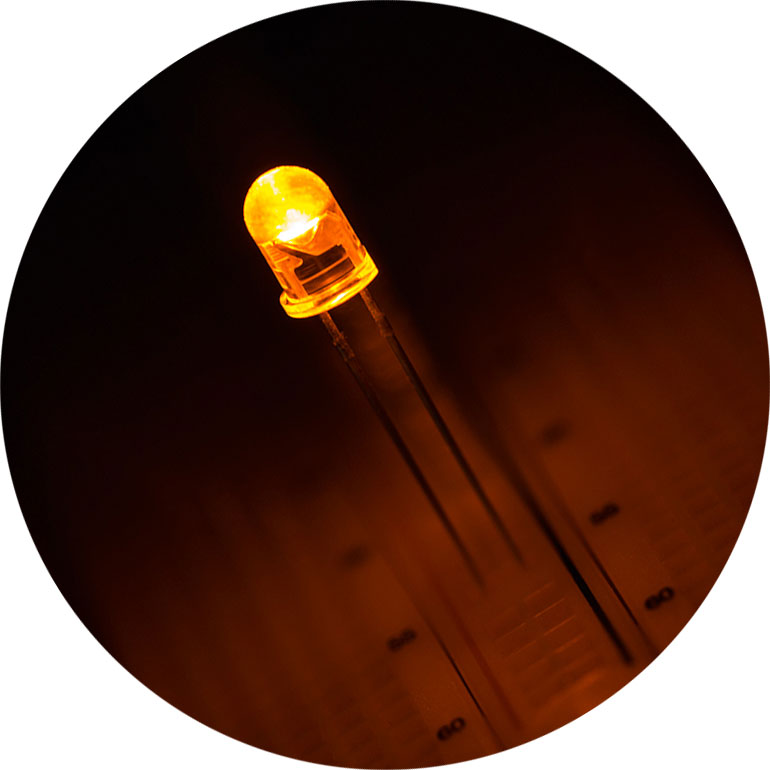

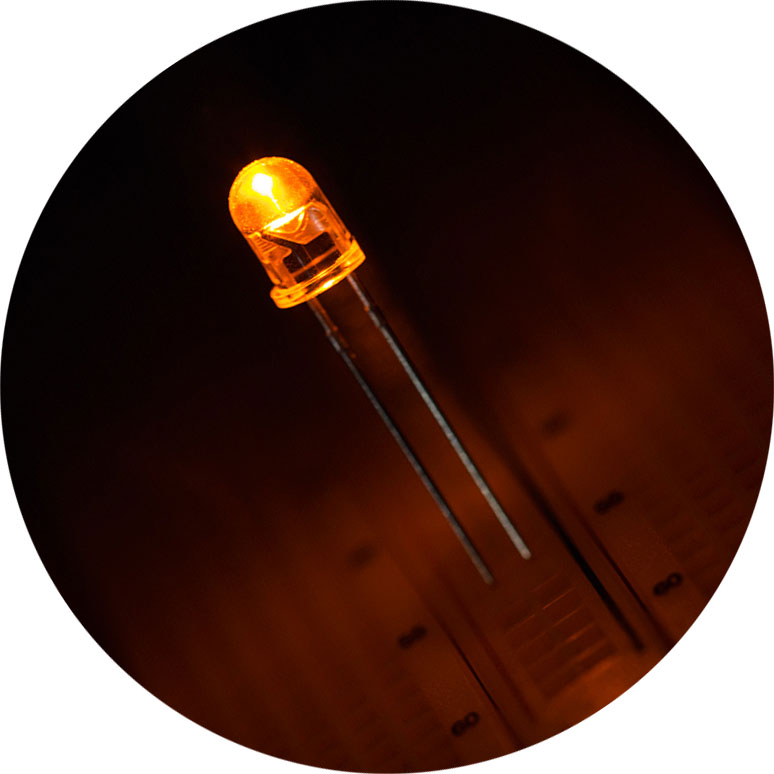

5mm through hole component LED in yellow. Features 3,500 millicandela, 590nm wavelength, and a 45 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.4V
LED Color: Yellow
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 2 Lumen
Maximum Forward Voltage: 3V
Millicandela: 3500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 50mA
Power Dissipation: 80mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Total Power Consumption: 0.048 Watts
Tube Diameter: T1-3/4
Viewing Angle: 45 degree
Wavelength: 590 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
