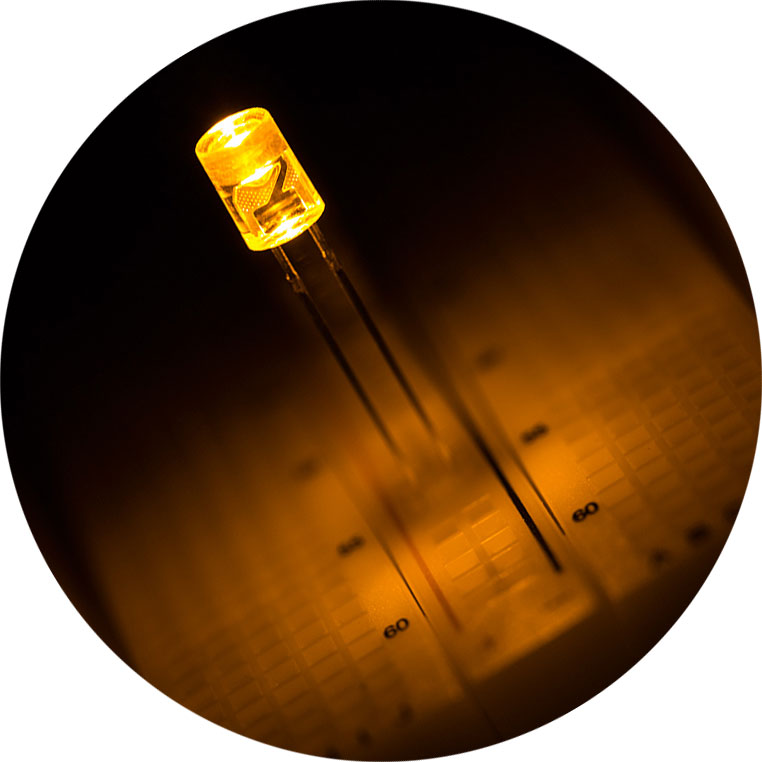

5mm Yellow LED - 587 nm - T1 3/4 LED w/ 120 Degree Viewing Angle

(2 Reviews) | Write a review

SKU: RL5-Y12120

Super Bright 5mm Yellow LED with through hole mounting. Features 587nm wavelength, 1,200 millicandela, 120 degree viewing angle, and flat tip. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 30 mA
Forward Voltage: 2.0V
LED Color: Yellow
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 4 Lumen
Maximum Forward Voltage: 2.4V
Millicandela: 1200mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 100mA
Power Dissipation: 85mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Total Power Consumption: 0.06 Watts
Tube Diameter: T1-3/4
Viewing Angle: 120 degree
Wavelength: 587 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
