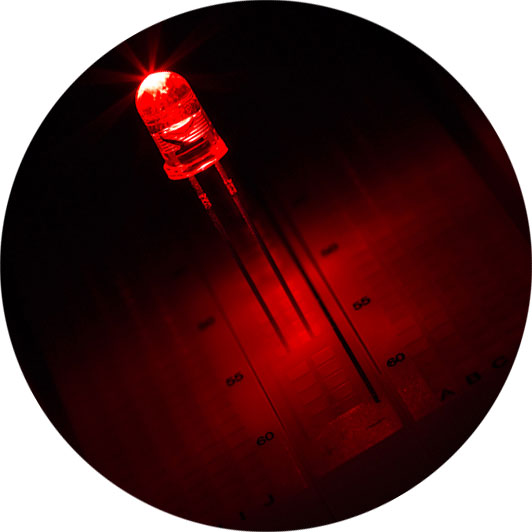

5mm Red LED - 631 nm - T1 3/4 LED w/ 15 Degree Viewing Angle

(2 Reviews) | Write a review

SKU: RL5-R5015

5mm through hole component LED in Red. Features 5,000 millcandela, 631nm wavelength, and a narrow 15 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 50 mA
Forward Voltage: 2.0V
LED Color: Red
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 0.3 Lumen
Maximum Forward Voltage: 2.5V
Millicandela: 5000mcd
Operating Temperature: -25~+85 °C (-13~+185 °F)
Peak Forward Current: 100mA
Power Dissipation: 150mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Total Power Consumption: 0.1 Watts
Tube Diameter: T1-3/4
Viewing Angle: 15 degree
Wavelength: 631 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
