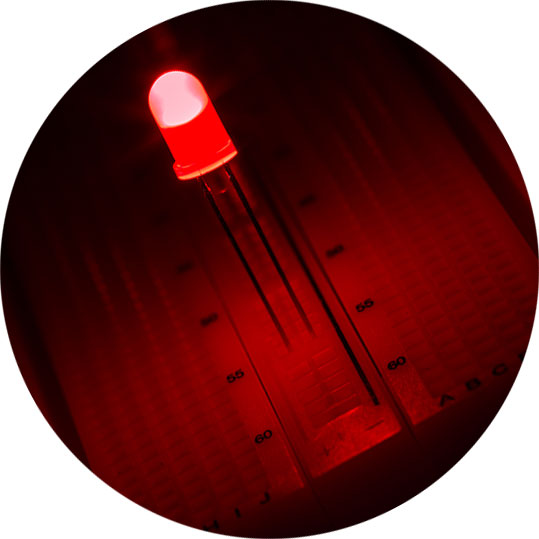

5mm through hole component LED in red. Features 1,500 millicandela, 628nm wavelength, and a 60 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 50 mA
Forward Voltage: 2.2V
LED Color: Red
LED Package: 5 mm (T-1 3/4)
Lens: Diffused
Lumen: 1.2 Lumen
Maximum Forward Voltage: 2.6V
Millicandela: 1500mcd
Operating Temperature: -25~+85 °C (-13~+185 °F)
Peak Forward Current: 100mA
Power Dissipation: 150mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Total Power Consumption: 0.11 Watts
Tube Diameter: T1-3/4
Viewing Angle: 60 degree
Wavelength: 628 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
