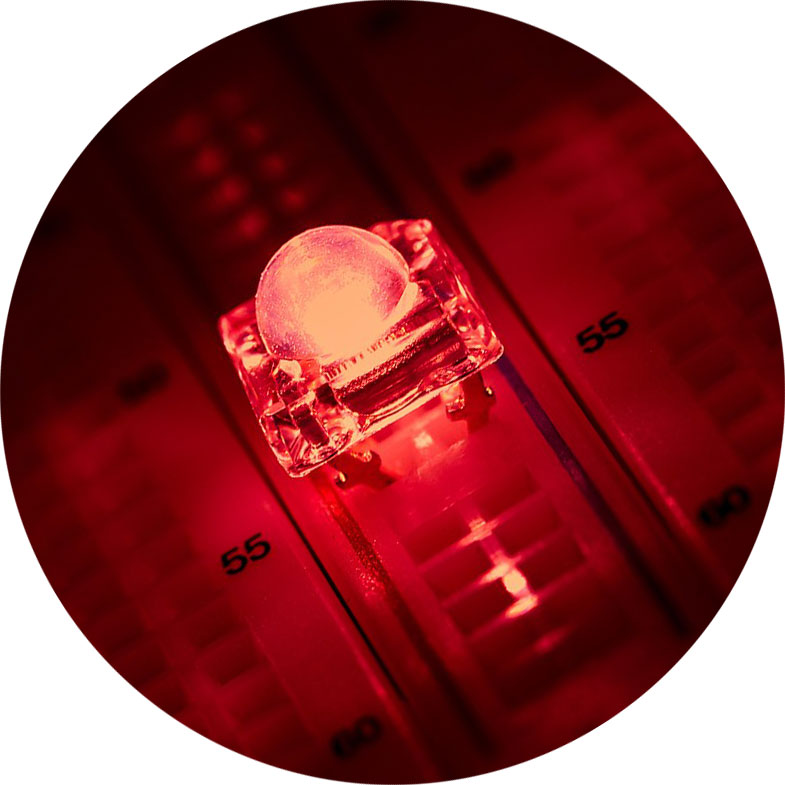

5mm Red High Flux LED - 630 nm - 90 Degree Viewing Angle - Red

(3 Reviews) | Write a review

SKU: HF5-R5590

5mm High Flux Red LED featuring a 630nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low-profile package. See Spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   2.2V
Color Options:   Red
Lens:   Clear
Lumen:   10 Lumens
Maximum Forward Voltage:   2.5V
Millicandela:   5500mcd
Ambient Operating Temperature Range:   -40~+85 °C (-40~+185 °F)
Power Consumption:   0.088 Watts
Reverse Voltage:   4V
Viewing Angle:   90 degree
