5mm Pure White High Flux LED - 6000K - 90 Degree Viewing Angle - Pure White

(6 Reviews) | Write a review

SKU: HF5-PW5590

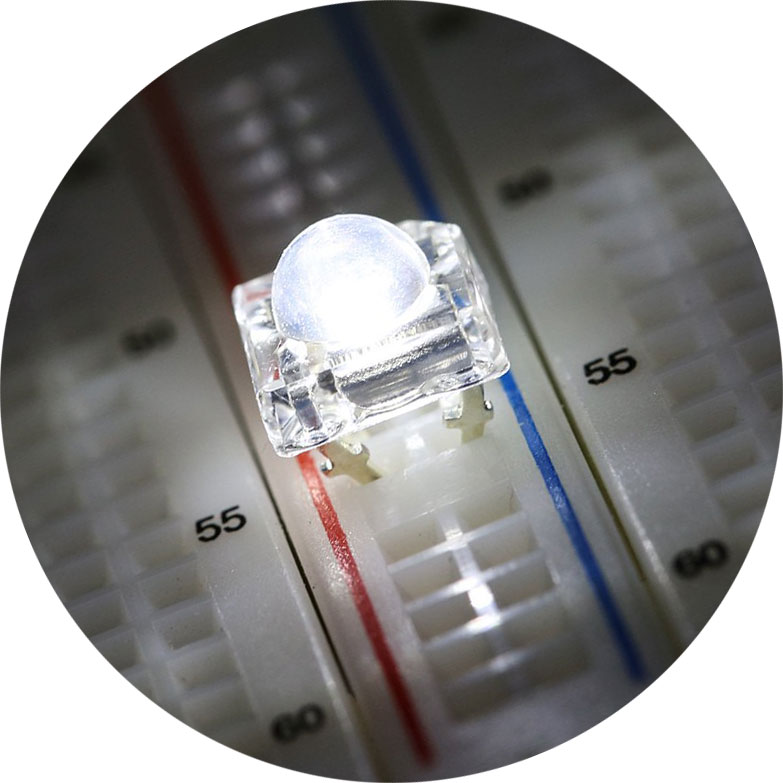

5mm High Flux Pure White LED. Features 6000K color temperature, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low-profile package. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   3.2V
Color Options:   Pure White
Lens：   Clear
Lumen：   10 Lumens
Maximum Forward Voltage：   3.5V
Millicandela：   5500mcd
Ambient Operating Temperature Range：   -40~+85 °C (-40~+185 °F)
Power Consumption：   0.064 Watts
Reverse Voltage：   5V
Viewing Angle：   90 degree
