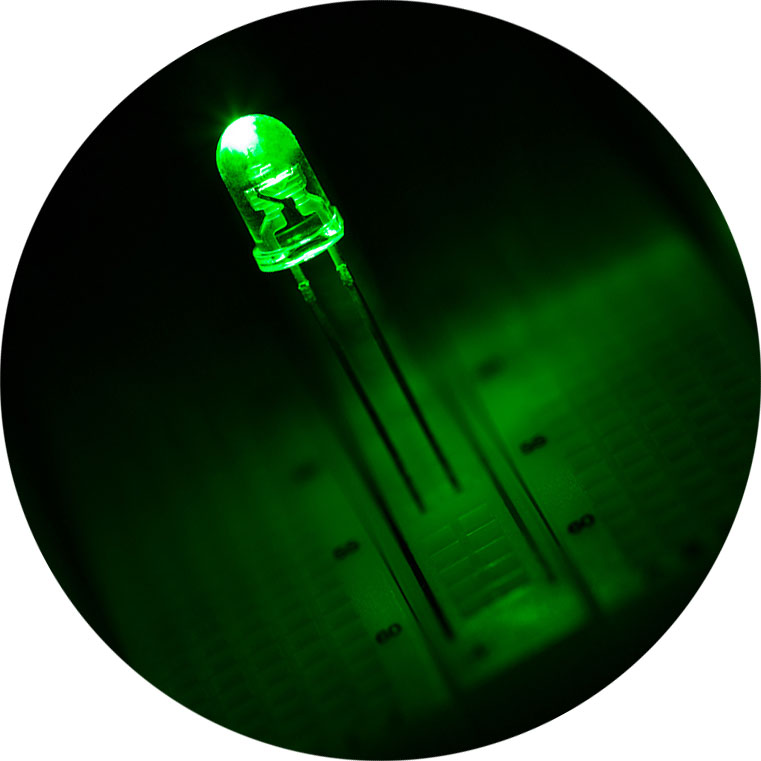

This green LED is designed for flashlights, indicator lights, bicycle headlamps, and other small projects. It has an output of 13,500mcd and a dominant wavelength of 525nm. The T1-3/4 through-hole 5mm LED has a clear lens and emits a 8° beam of illumination. It has a typical forward voltage of 3.2V at 20mA and a peak forward current of 100mA. Use of a resistor or other current-limiting device is crucial to prevent premature LED failure. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate. Price listed is per unit; however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.2V
LED Color: Green
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 0.2 Lumen
Maximum Forward Voltage: 3.8V
Millicandela: 13500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Power Dissipation: 95mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Total Power Consumption: 0.064 Watts
Tube Diameter: T1-3/4
Viewing Angle: 8 degree
Wavelength: 525 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
