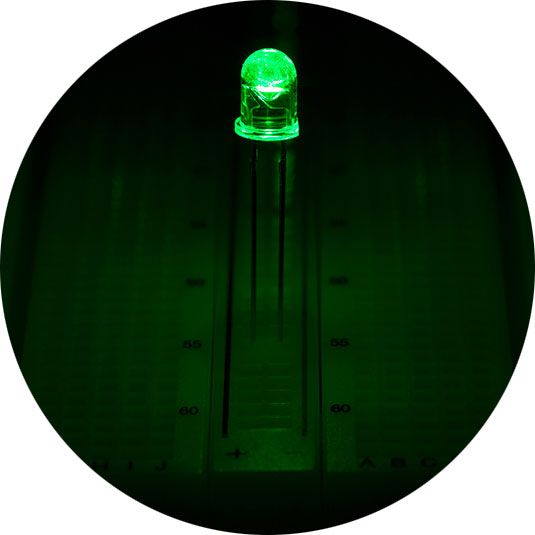

5mm Green LED - 525 nm - T1 3/4 LED w/ 45 Degree Viewing Angle

(8 Reviews) | Write a review

SKU: RL5-G8045

Green 5mm through hole LED. Features 525nm wavelength, 8,000mcd, and 45 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.5V
LED Color: Green
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 4 Lumen
Maximum Forward Voltage: 4V
Millicandela: 8000mcd
Operating Temperature: -20~+85 °C (-4~+185 °F)
Peak Forward Current: 100mA
Power Dissipation: 80mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+85 °C
Total Power Consumption: 0.11 Watts
Tube Diameter: T1-3/4
Viewing Angle: 45 degree
Wavelength: 525 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
