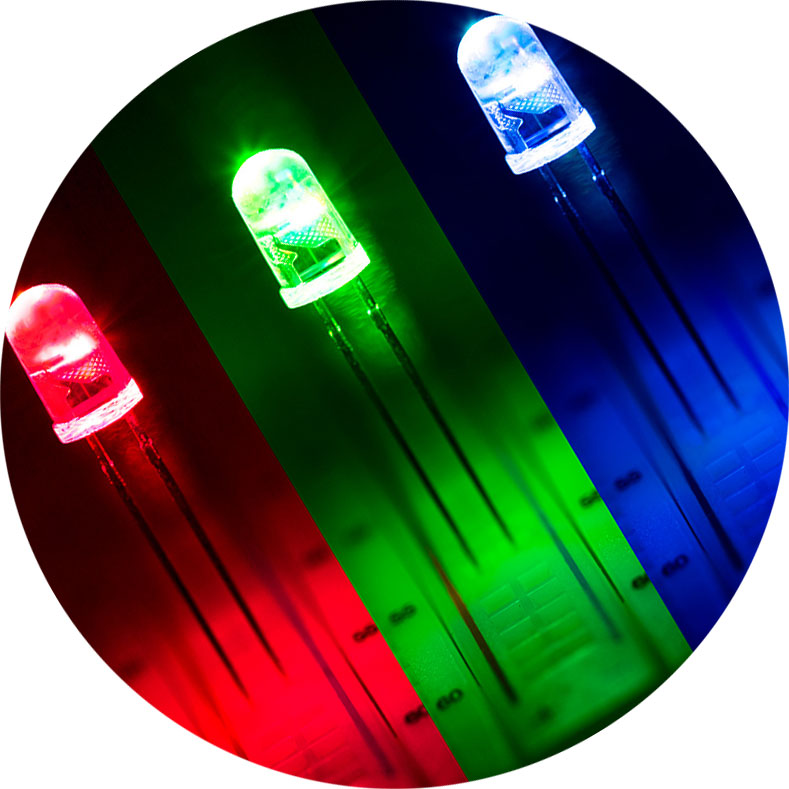

5mm Fast Color Changing LED - T1 3/4 RGB LED w/ 30 Degree Viewing Angle

(4 Reviews) | Write a review

SKU: RL5-RGB-ACCF-2

5mm through hole RGB automatic color changing LED. Color change goes quickly through a pattern of RGB colors (0.27 second on time for each color) then repeats endlessly. Specs of 5,000mcd. with 30 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 40 mA
Forward Voltage: 2V~5V
LED Color: RGB
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Millicandela: 800-1500mcd
Operating Temperature: -30~+85 °C (-22~+185 °F)
Reverse Voltage: 5V
Storage Temperature: -30~+85 °C
Tube Diameter: T1-3/4
Viewing Angle: 30 degree
Wavelength: 465 nm, 523 nm, 623 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
All specifications are subject to change without notice.
