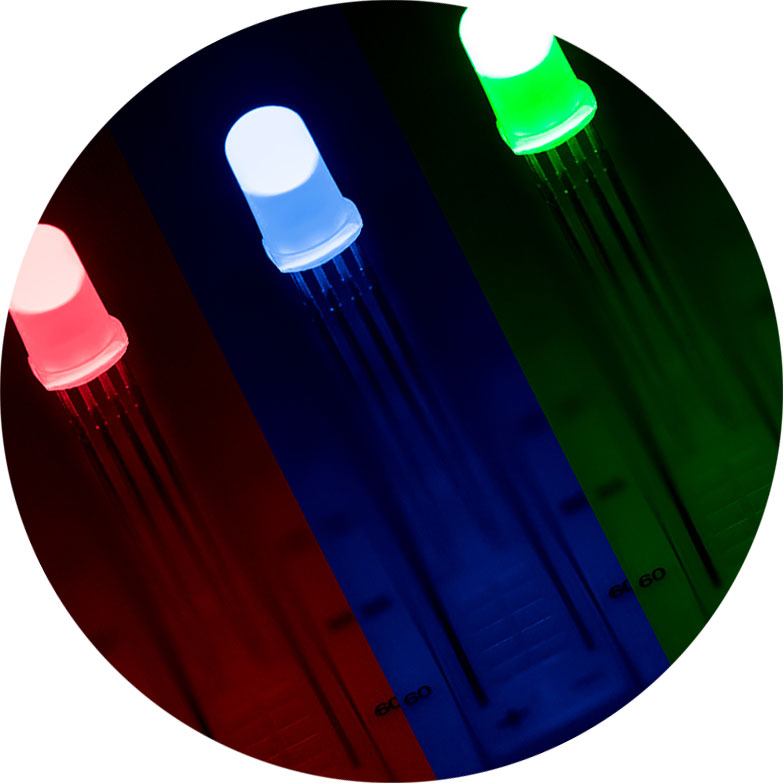

5mm Diffused Tri-Color Through Hole LED - RGB T1 3/4 LED w/ 60 Degree Viewing Angle

(7 Reviews) | Write a review

SKU: RL5-RGB-DCC-2

Tri-Color 5mm through hole LED with diffused lens. Features 467/520/625 wavelengths, 5,000mcd, and a 60 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.0V
LED Color: RGB
LED Package: 5 mm (T-1 3/4)
Lens: Diffused
Maximum Forward Voltage: 2.4V
Operating Temperature: -40~+60 °C (-40~+140 °F)
Peak Forward Current: 50mA
Power Dissipation: 100mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Total Power Consumption: 0.06 Watts
Tube Diameter: T1-3/4
Viewing Angle: 60 degree
Wavelength: 467 nm, 520 nm, 625 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
