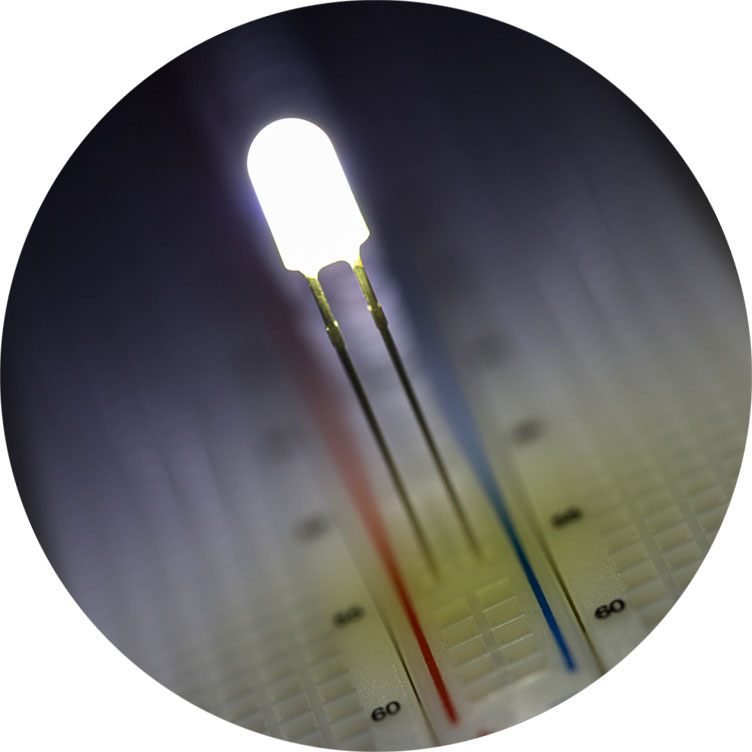

5mm Cool White Through Hole LED - 7350K - T1 3/4 LED w/ 360 Degree Viewing Angle

(3 Reviews) | Write a review

SKU: RL5-W45-360

Cool white 5mm through hole LED. Features 7350K color temperature, 400mcd, and a 360 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Color Temperature: 7350 K
Continuous Forward Current: 20 mA
Forward Voltage: 3.2V
LED Color: Cool 7350K
LED Package: 5 mm (T-1 3/4)
Lens: Diffused
Lumen: 4.5 Lumen
Maximum Forward Voltage: 3.3V
Millicandela: 400mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Reverse Current: 100mA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Total Power Consumption: 0.064 Watts
Tube Diameter: T1-3/4
Viewing Angle: 360 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
