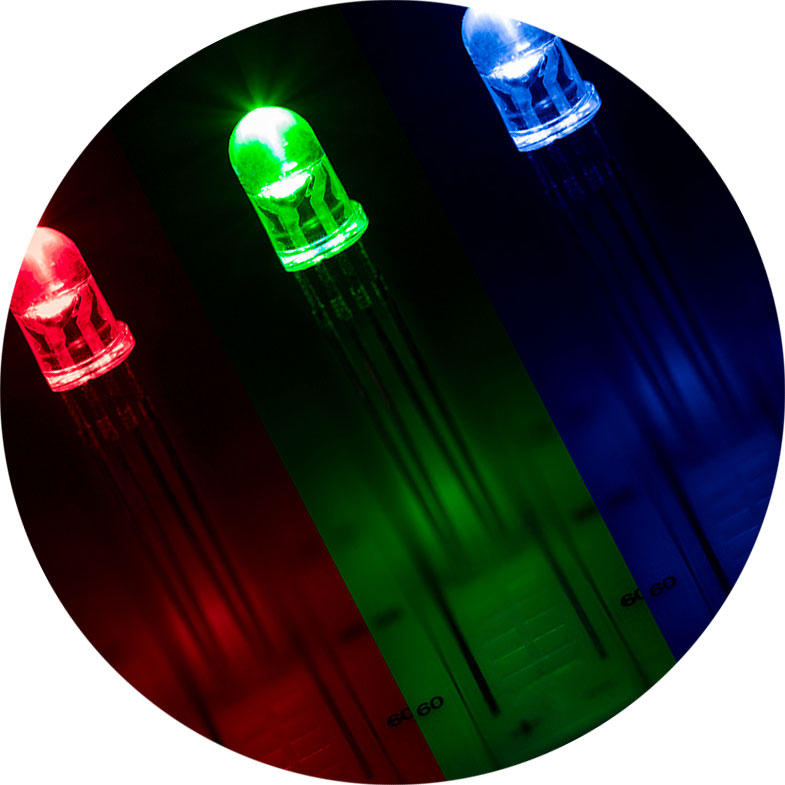

5mm Clear Tri-Color LED - RGB T1 3/4 LED w/ 15 Degree Viewing Angle

(2 Reviews) | Write a review

SKU: RL5-RGB-CCC

5mm Tri-Color through hole LED. Features 472nm/525nm/630nm wavelengths, 5,000mcd, and 15 degree viewing angle. Available in common anode or common cathode. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.0V
LED Color: RGB
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Maximum Forward Voltage: 2.6V
Millicandela: 1000-5000mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 50mA
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Total Power Consumption: 0.044 Watts
Tube Diameter: T1-3/4
Viewing Angle: 15 degree
Wavelength: 472 nm, 525 nm, 630 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
