5mm Blue High Flux LED - 465 nm - 90 Degree Viewing Angle - Blue

(5 Reviews) | Write a review

SKU: HF5-B5590

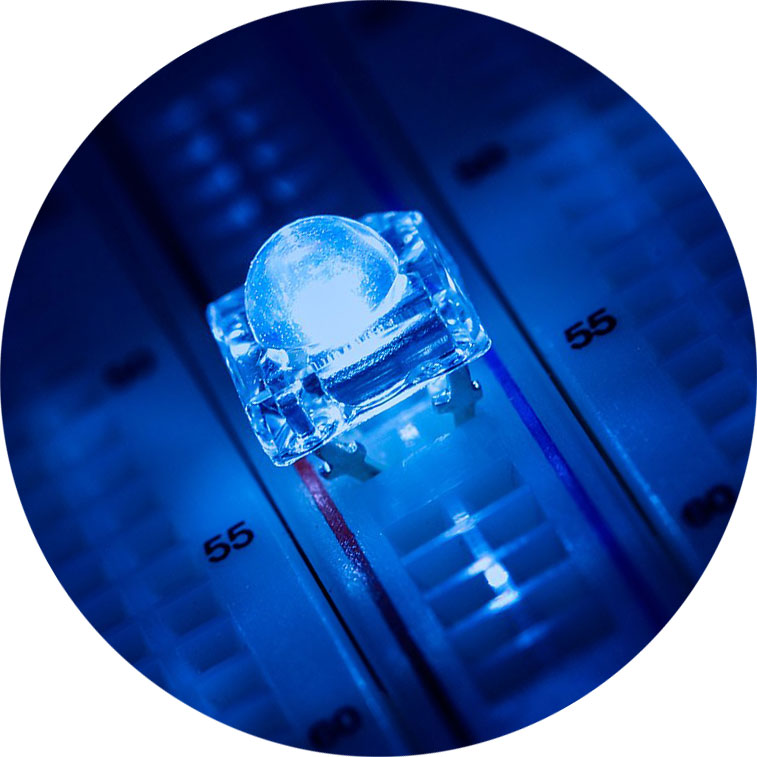

5mm High Flux blue LED. Features 465nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low profile package. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   3.2V
Color Options:   Blue
Lens:   Clear
Lumen:   10 Lumens
Maximum Forward Voltage:   3.5V
Millicandela:   5500mcd
Ambient Operating Temperature Range:   -40~+85 °C (-40~+185 °F)
Power Consumption:   0.064 Watts
Reverse Voltage:   5V
Viewing Angle:   90 degree
