3mm Yellow High Flux LED - 590 nm - 70 Degree Viewing Angle - 3mm Yellow High Flux LED

(2 Reviews) | Write a review

SKU: HF3-Y5570

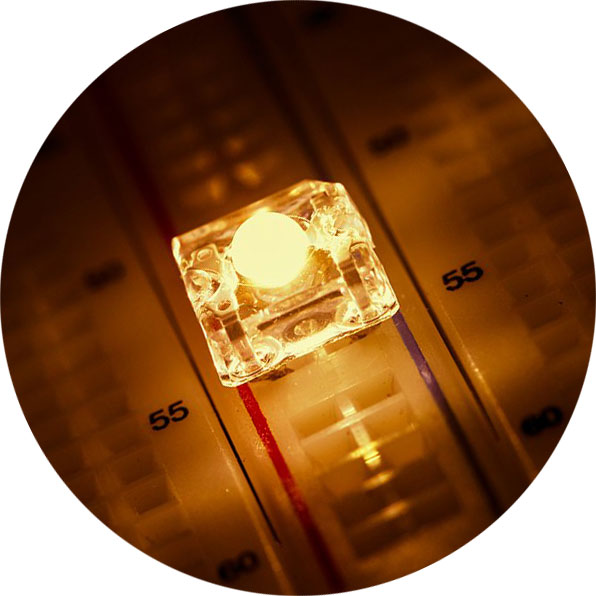

3mm High Flux Yellow LED featuring a 590nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   2.2V
Color Options:   Yellow
Lens:   Clear
Lumen:   6 Lumens
Maximum Forward Voltage:   2.6V
Millicandela:   5500mcd
Ambient Operating Temperature Range:   -40~+85 °C (-40~+185 °F)
Power Consumption:   0.088 Watts
Reverse Voltage:   4V
Viewing Angle:   70 degree
