3mm Red High Flux LED - 630 nm - 70 Degree Viewing Angle - 3mm Red High Flux LED

(10 Reviews) | Write a review

SKU: HF3-R5570

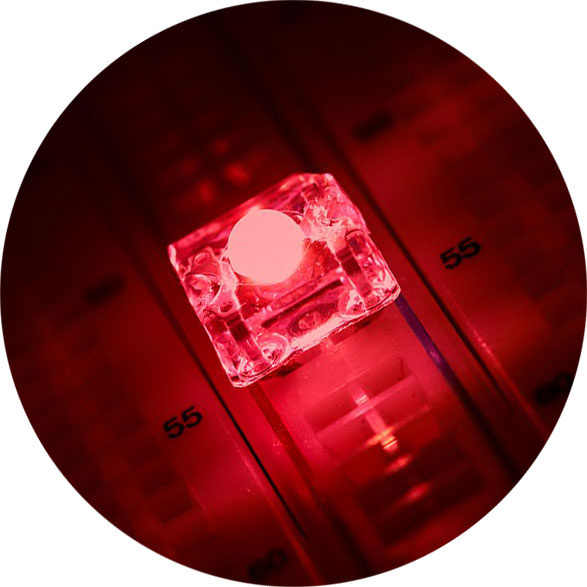

3mm High Flux Red LED featuring a 630nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   2.2V
Color Options:   Red
Lens:   Clear
Lumen:   6 Lumens
Maximum Forward Voltage:   2.4V
Millicandela:   5500mcd
Ambient Operating Temperature Range:   -40~+85 °C (-40~+185 °F)
Reverse Voltage:   4V
Viewing Angle:   70 degree
