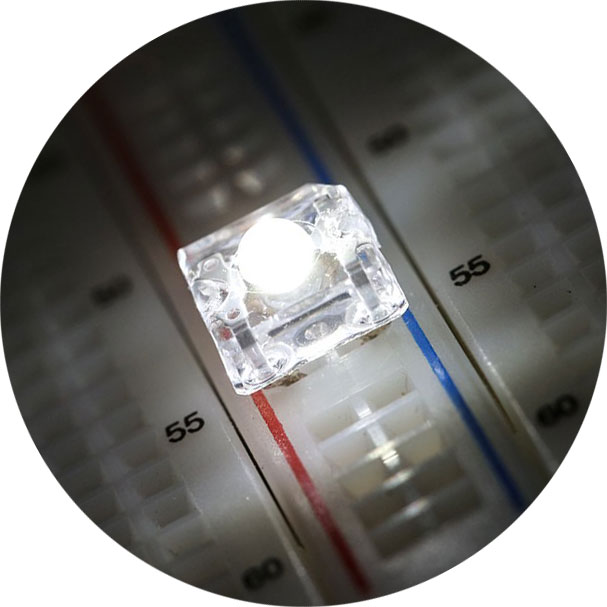

3mm Cool White High Flux LED - 7050K - 70 Degree Viewing Angle - 3mm White High Flux LED

(0 Reviews) | Write a review

SKU: HF3-W5570

3mm High Flux Cool White LED featuring 590nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications
Continuous Forward Current:   20 mA
Forward Voltage:   3.2V
Color Options:   Cool 7050K
Lens:   Clear
Lumen:   6 Lumens
Maximum Forward Voltage:   3.5V
Millicandela:   5500mcd
Ambient Operating Temperature Range:   -40~+85 °C (-40~+185 °F)
Power Consumption:   0.064 Watts
Reverse Voltage:   5V
Viewing Angle:   70 degree
