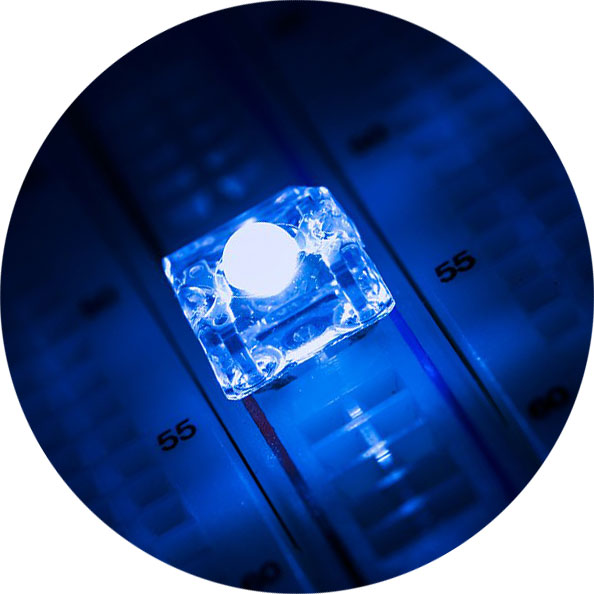

3mm Blue High Flux LED - 470 nm - 70 Degree Viewing Angle - 3mm Blue High Flux LED
SKU:
HF3-B5570
3mm High Flux Blue LED featuring a 470nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.6V
Color Options: Blue
Lens: Clear
Lumen: 6 Lumens
Maximum Forward Voltage: 4V
Millicandela: 5500mcd
Ambient Operating Temperature Range: -40~+85 °C (-40~+185 °F)
Power Consumption: 0.072 Watts
Reverse Voltage: 5V
Viewing Angle: 70 degree
