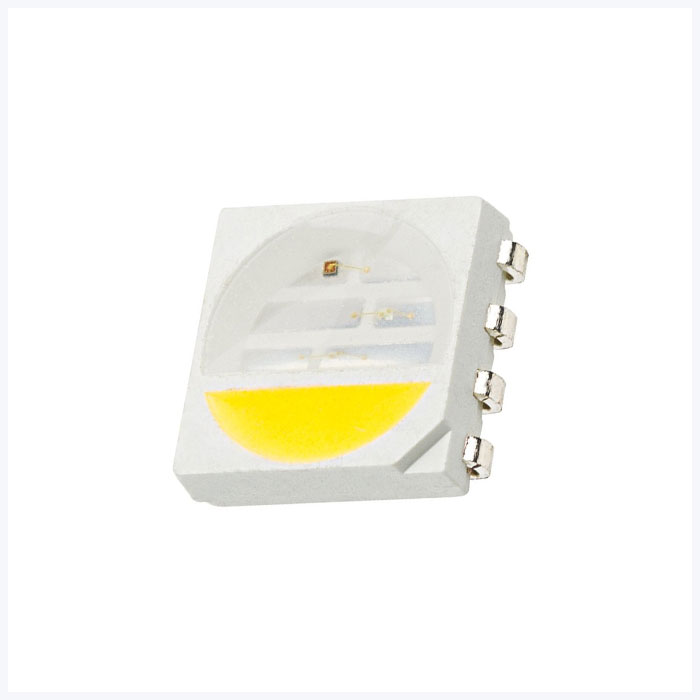

    5050 SMD LED - RGB/Natural White Surface Mount LED with 120 Degree Viewing Angle - 5050 SMD LED

      (5 Reviews) | Write a review
    SKU: 5050-RGBNW
    Discontinued
    Starting at: $0.65
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The natural white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and natural white has a 4000K CCT. The LED emits a wide 120° viewing angle. Also available in RGB/Cool White, RGB/Warm White, and RGB.

    Specifications
    Continuous Forward Current:    4x20 mA
    Forward Voltage:    R:2.2 G:3.2 B:3.2 W:3.2
    Color Options:    RGB+NW 4000K
    Lumen:    7.5 Lumens
    Millicandela:    2400mcd
    Ambient Operating Temperature Range:    -20~+80 °C (-4~+176 °F)
    Power Consumption:    0.192 Watts
    Reverse Voltage:    5V
    Viewing Angle:    120 degree
