5050 SMD LED - RGB Surface Mount LED with 120 Degree Viewing Angle - 5050 SMD LED
SKU:
5050-RGB
This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White.
Specifications
Continuous Forward Current: 3x20 mA
Forward Voltage: R:2.0 G:3.2 B:3.2
Color Options: RGB
Lumen: 3.14 Lumens
Millicandela: 1000mcd
Ambient Operating Temperature Range: -20~+80 °C (-4~+176 °F)
Power Consumption: 0.192 Watts
Reverse Voltage: 5V
Viewing Angle: 120 degree
Related Items

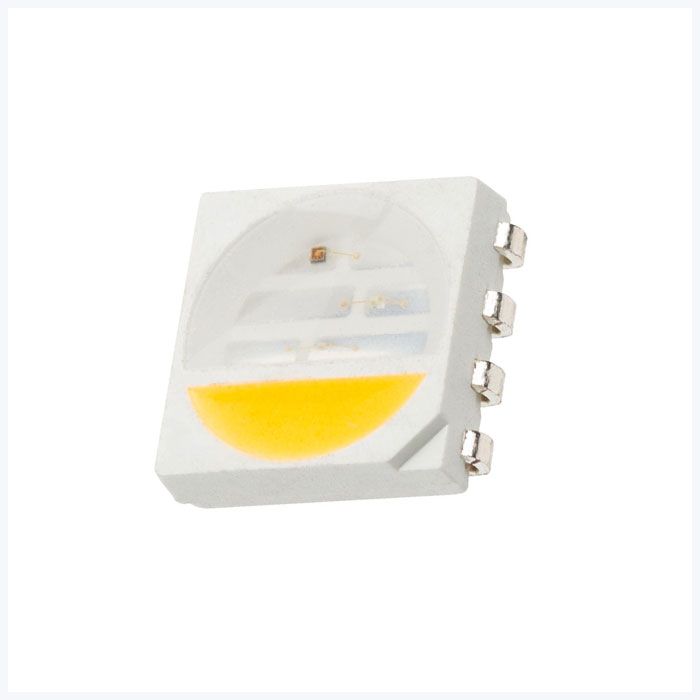

5050 SMD LED - RGB/Cool White Surface Mount LED with 120 Degree Viewing Angle - 5050 SMD LED
