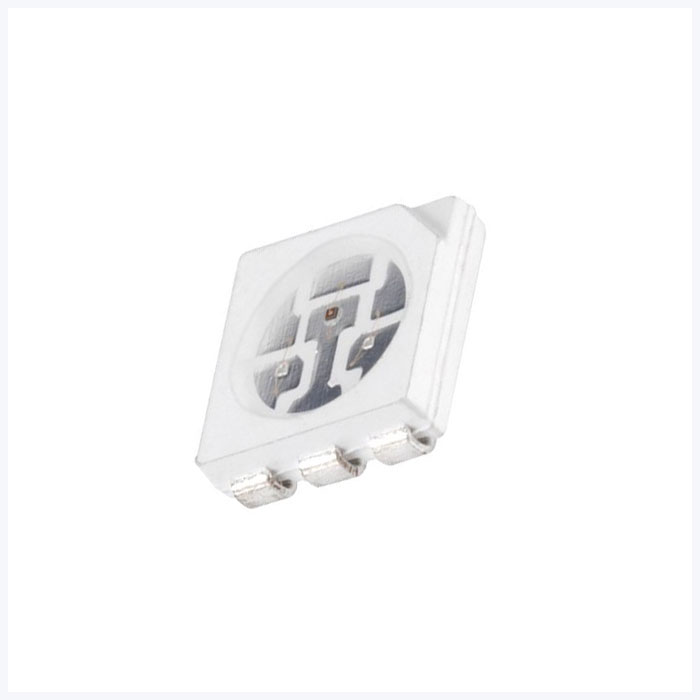

5050 SMD LED - 590nm Yellow Surface Mount LED with 120 Degree Viewing Angle - Yellow 5050 SMD LED
SKU:
5050-Y1200
The 5mm 3 chip surface mount component LED in Yellow features a 590 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Green, Red, and Blue.
Specifications
Continuous Forward Current: 3x20 mA
Forward Voltage: 2.0V
Color Options: Yellow
Lumen: 4 Lumens
Maximum Forward Voltage: 2.2V
Millicandela: 1200mcd
Ambient Operating Temperature Range: -20~+80 °C (-4~+176 °F)
Power Consumption: 0.12 Watts
Reverse Voltage: 5V
Viewing Angle: 120 degree
