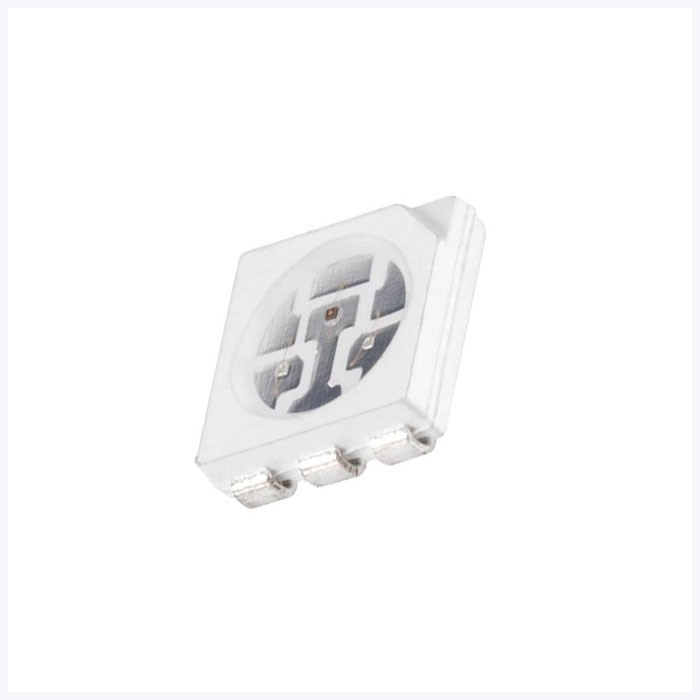

5050 SMD LED - 520nm Green Surface Mount LED with 120 Degree Viewing Angle - Green 5050 SMD LED
SKU:
5050-G3500
The 5mm 3 chip surface mount component LED in Green features a 520 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Red, Blue, and Yellow.
Specifications
Continuous Forward Current: 3x20 mA
Forward Voltage: 3.2V
Color Options: Green
Lumen: 11 Lumens
Maximum Forward Voltage: 3.4V
Millicandela: 3500mcd
Ambient Operating Temperature Range: -20~+80 °C (-4~+176 °F)
Power Consumption: 0.192 Watts
Reverse Voltage: 5V
Viewing Angle: 120 degree
​
