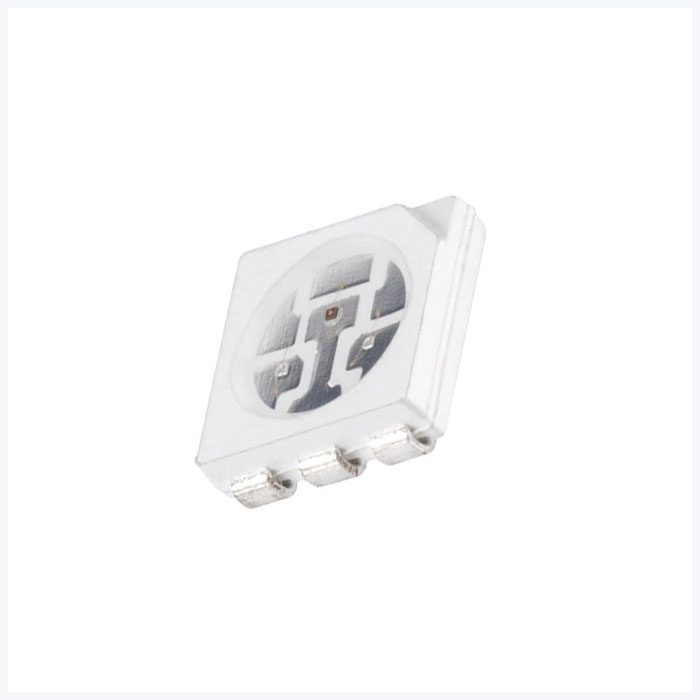

5050 SMD LED - 465nm Blue Surface Mount LED with 120 Degree Viewing Angle - Blue 5050 SMD LED
SKU:
5050-B1200
The 5mm 3 chip surface mount component LED in Blue features a 465 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Green, Red, and Yellow.
Specifications
Continuous Forward Current: 3x20 mA
Forward Voltage: 3.2V
Color Options: Blue
Lumen: 4 Lumens
Millicandela: 1200mcd
Ambient Operating Temperature Range: -20~+80 °C (-4~+176 °F)
Power Consumption: 0.192 Watts
Reverse Voltage: 5V
Viewing Angle: 120 degree
​
