Surface Mount (SMD)

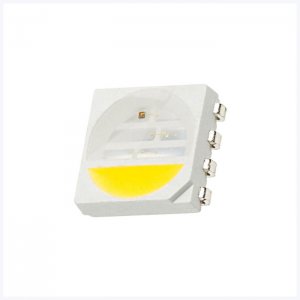

This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The natural white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and natural white has a 4000K CCT. The LED emits a wide...

This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The cool white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and cool white has a 6500K CCT. The LED emits a wide 120°...

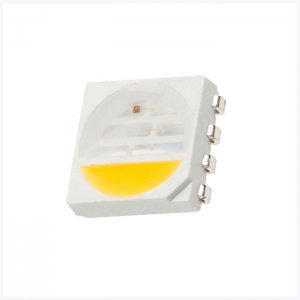

This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The warm white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and warm white has a 3000K CCT. The LED emits a wide 120°...

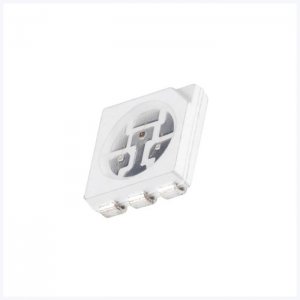

This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White. Specifications Continuous Forward Current:    3x20 mA Forward Voltage:    R:2.0 G:3.2 B:3.2...

The 5mm 3 chip surface mount component LED in Red features a 625nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement.Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Green, Blue, and Yellow. Specifications Continuous Forward Current:    3x20 mA Forward Voltage:    2.0V Color Options:    Red Lumen:    4 Lumens...

The 5mm 3 chip surface mount component LED in Green features a 520 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Red, Blue, and Yellow. Specifications Continuous Forward Current:    3x20 mA Forward Voltage:    3.2V Color Options:    Green Lumen:    11...

The 5mm 3 chip surface mount component LED in Blue features a 465 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Green, Red, and Yellow. Specifications Continuous Forward Current:    3x20 mA Forward Voltage:    3.2V Color Options:    Blue Lumen:    4...

The 5mm 3 chip surface mount component LED in Yellow features a 590 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department. Also available in Green, Red, and Blue. Specifications Continuous Forward Current:    3x20 mA Forward Voltage:    2.0V Color Options:    Yellow Lumen:    4...
