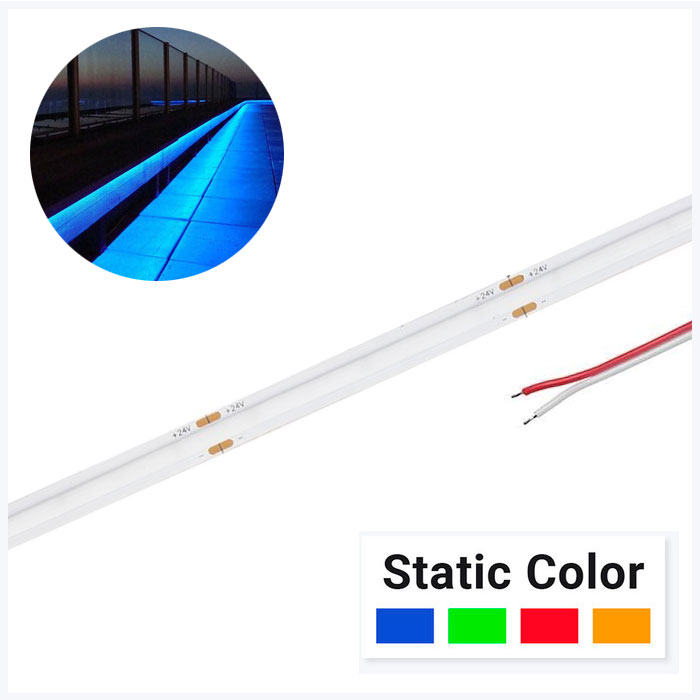

COB Series COB LED Strip Light creates a smooth, seamless single-color light. Chip-on-board technology has a higher density of LEDs for a more intense, uniform light that reduces heat buildup. The superior design will not show visible dots or hot spots, making it ideal for reflective surfaces such as granite countertops and tile floors. With no need for additional diffusers, the low-profile strip can illuminate narrow applications such as backlighting or displays. Improved flexibility can wrap light along edges and curved surfaces.

Also available with IP65 rating for outdoor application.

Product Details:

• Strip width: 8mm
• 3M™ adhesive backing
• Flexible COB design for highly adaptable mounting
• 2.46 in. (62.5 mm) segment length
• 24 VDC input voltage
• 50 W total (3.05 with ft)
• Max run: 24.6 ft (7.5 m)
• 0-100% dimmable
• Connection: pigtail
• 180° beam angle
• UL Listed
• IP20 Rated for dry conditions
• 5-year warranty

Specifications
Ambient Operating Temperature：    -20~+40 °C (-4~+104 °F)
Certifications/Compliance：    UL Listed
Current Draw：     2.1 A
Current Draw per Foot：     127mA
Dimmable：    Yes
Environmental Rating：     Non-weatherproof, Suitable for Dry Locations
Finish：    White
Input Connection Type：    Pigtail
IP Rating：     IP20
LED Beam Angle：     180°
LED Density：    156 LEDs/ft
LED Type：    COB (chip-on-board)
LEDs per Segment：    32
Length：    16.4ft (5m)
Max Run (Class 2)：     Up to 24.6ft (7.5m)
Minimum Cut Length：    62.5mm (2.46in)
Operating Voltage：    24 VDC
Power Consumption：    50 Watts
Rated Life (L70)：    30000 Hours
Series：    COB
Strip Width：    8mm (0.31in)
Wattage per Foot：    3.1 W/ft (10.2 W/m)
Wire Length：    1.7 ft (0.5 m)
