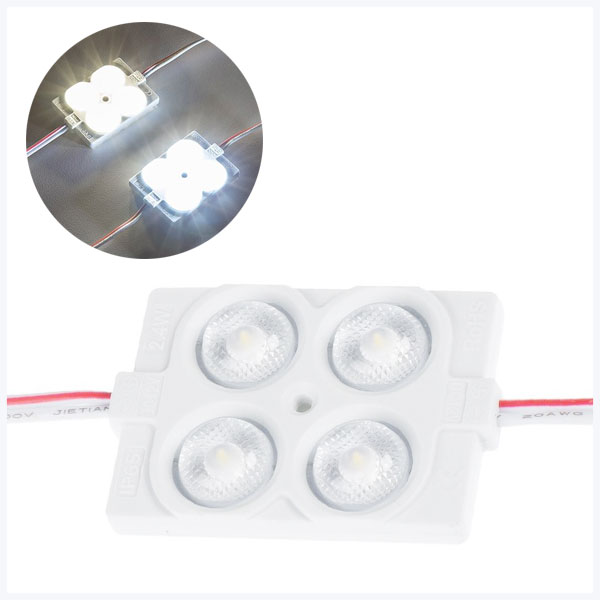

The square shape of each SMCC2 LED Module contains 4 LEDs and high quality optics, providing a source of light for an array of applications. These modules distribute a very wide beam, ensuring smooth illumination without hotspots. While 3M™ adhesive backing is an easy solution for temporary applications like trade show displays, screw holes are included for more permanent mounting. Ideal for sign and display builders, electrical contractors, and OEMs. Designed for versatility, use these sealed weatherproof modules to customize light in channel letters or display booths.

Product Details:

• Dimmable with optional controllers
• Each module measures 2.03"x1.42"
• 5.5" of wire between each module
• Max run: 20 modules
• Constant-Current driver maintains brightness
• 35000 hours L70 lifespan
• Rated IP65 for wet locations
• UL Recognized Component, CE
• 5 year warranty

Specifications
Beam Angle:    170°
Constant Current:    Yes
Dimming Type:     Pulse Width Modulation (PWM)
Enclosed Fixture Rated:    Yes
Connection Type:    Pigtail
LED Lifetime:    35000 Hours
LED Type:    2835 SMD
Material:    Plastic
Max Run (# of Modules):     20
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Standards And Certifications:    CE, UL Recognized
Voltage:    12 VDC
