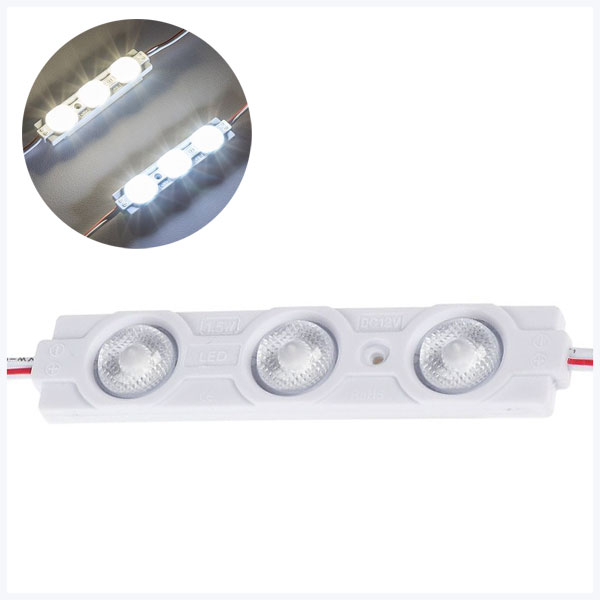

SMCC2 series LED Modules are designed to be a versatile solution for sign and display builders, electrical contractors, OEMs, and more. With high quality optics, each module contains 3 LEDS, and a lens that creates broad, uniform illumination without hotspots. Screw holes allow for permanent mounting, while 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays. These modules have a sealed weatherproof body to be used in an array of lighting design applications such as channel letters or display booths.

Product Details:

• Dimmable with optional controllers
• Each module measures 3.38"x0.72"
• 5.5" of wire between each module
• Max run: 20 modules
• Constant-Current driver maintains brightness
• 35000 hours L70 lifespan
• Rated IP65 for wet locations
• UL Recognized Component, CE
• 5 year warranty

Specifications
Beam Angle:    170°
Constant Current:    Yes
Dimming Type:     Pulse Width Modulation (PWM)
Enclosed Fixture Rated:    Yes
Connection Type:    Pigtail
LED Lifetime:    35000 Hours
LED Type:    2835 SMD
Material:    Plastic
Max Run (# of Modules):     20
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Standards And Certifications:    CE, UL Recognized
Voltage:    12 VDC
