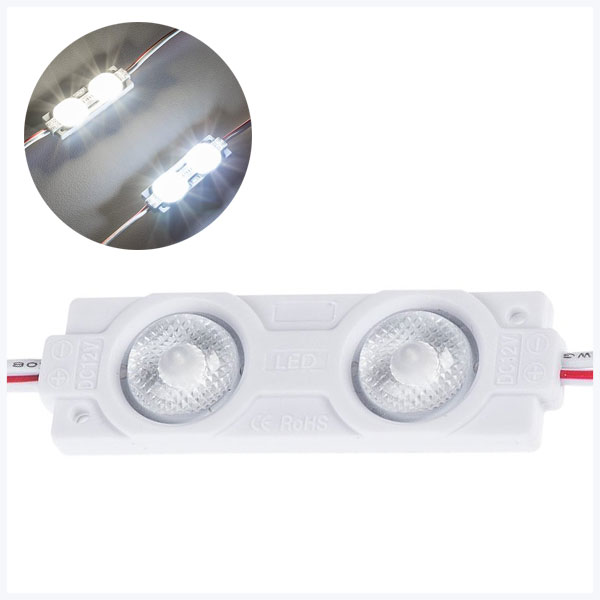

With high quality optic design, the SMCC2 series LED Modules provide a wide beam of light ideal for sign backlighting, channel letters, stage construction, and more. Each module contains 2 LEDS, and a lens to ensure a smooth, broad illumination free of hotspots. Screw holes allow for more permanent mounting, while 3M™ adhesive backing simplifies set up and take down for trade shows displays. A flexible solution for sign and display builders, electrical contractors, or OEMs, these modules have sealed weatherproof housing to be used in an array of lighting design applications.

Product Details:

• Dimmable with optional controllers
• Each module measures 2.28"x0.72"
• 5.5in of wire between each module
• Max run: 30 modules
• Requires a constant voltage power supply
• 35000 hours L70 lifespan
• Rated IP65 for wet locations
• UL Recognized Component, CE
• 5 year warranty

Specifications
Beam Angle:    170°
Constant Current:    Yes
Dimming Type:     Pulse Width Modulation (PWM)
Enclosed Fixture Rated:    Yes
Connection Type:    Pigtail
LED Lifetime:    35000 Hours
LED Type:    2835 SMD
Material:    Plastic
Max Run (# of Modules):     30
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Standards And Certifications:    CE, UL Recognized
Voltage:    12 VDC
