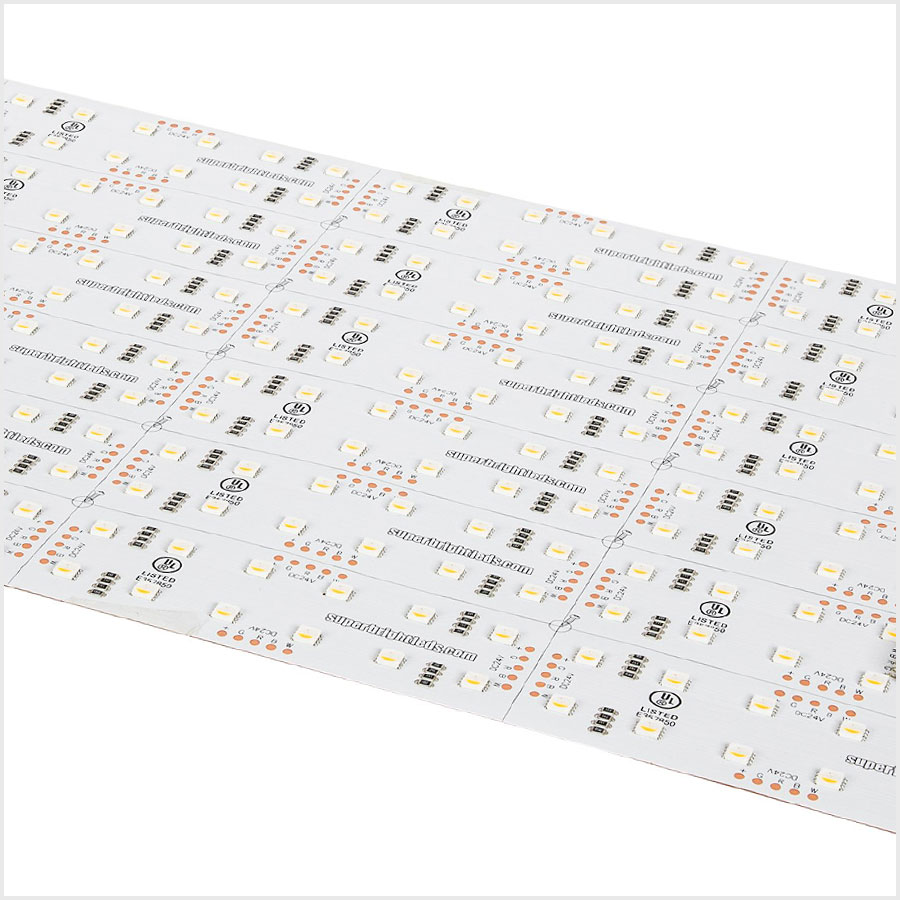

The RGB+W LED light sheet is fully customizable, color-changing, and adaptable for light boxes, logos, billboards, and more. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:

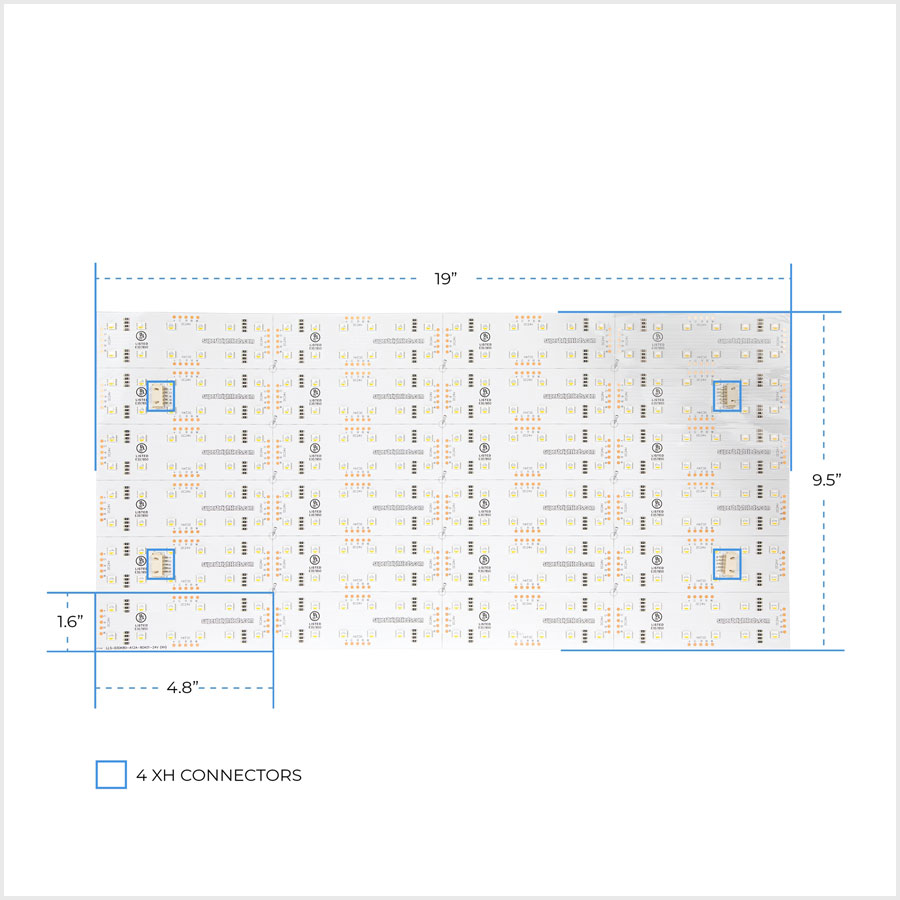

Segment size: 4.72" x 1.57"- 24 segments per sheet
Max Run with Class 2 wiring: 1 sheet

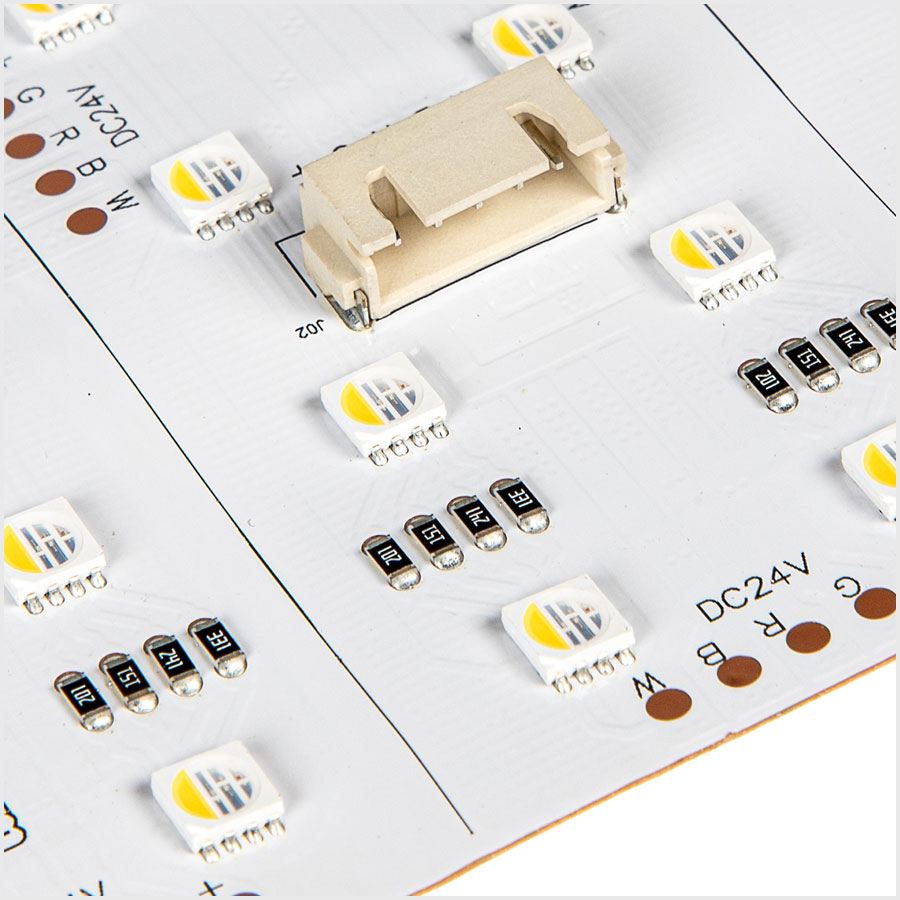

Input connection: 5-pin XH connector
Includes one 0.5m pigtail connector and one 8cm interconnect
PWM dimmable
24 VDC
UL Listed
5-year warranty
​
Specifications
Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
Certifications/Compliance:    UL Listed
CRI:    80+
Current Draw:     3.3 A

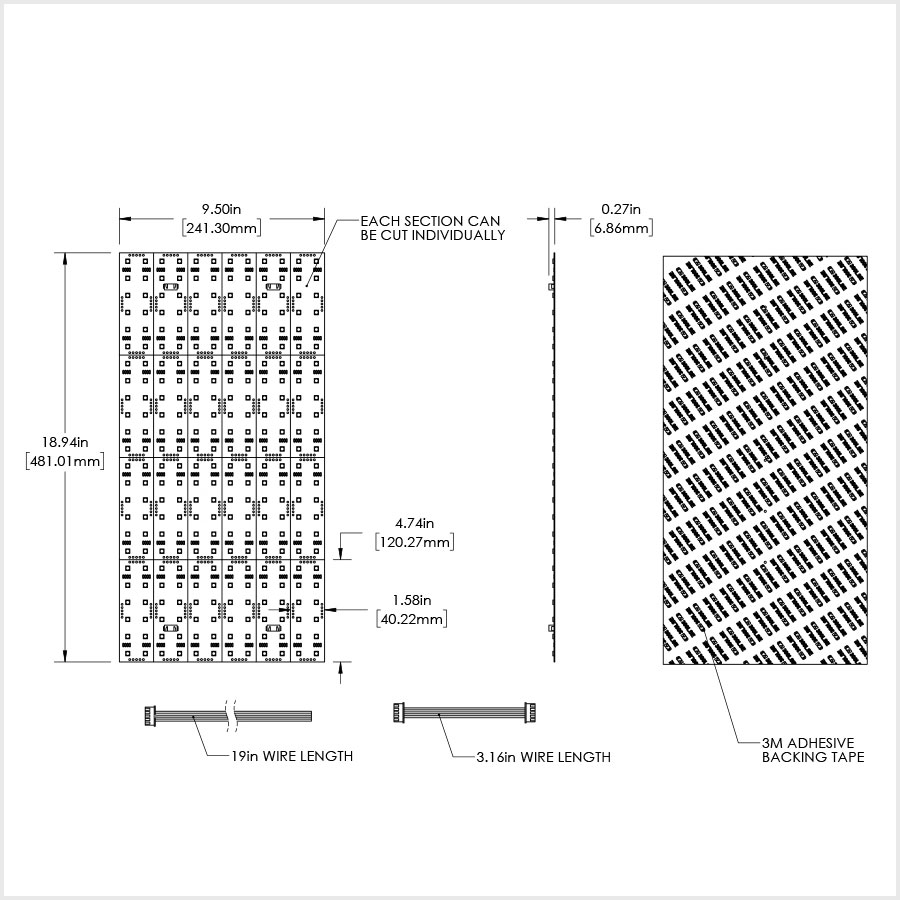

Dimensions:    18.9in x 9.5in
Dimmable:    Yes
Enclosed Fixture Rated:    Yes
Finish:    White
Input Connection Type:    Pigtail, XH 5-Pin Connector
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    5050 SMD
LEDs per Segment:    12
Max Run (Class 2):     1 Sheet
Operating Voltage:    24 VDC
Output Connection Type:    XH 5-Pin Connector
Power Consumption:    80 Watts
Rated Life (L70):    50000 Hours
Segment Size:    4.72 in. x 1.57 in. (120 mm x 40 mm)
​
