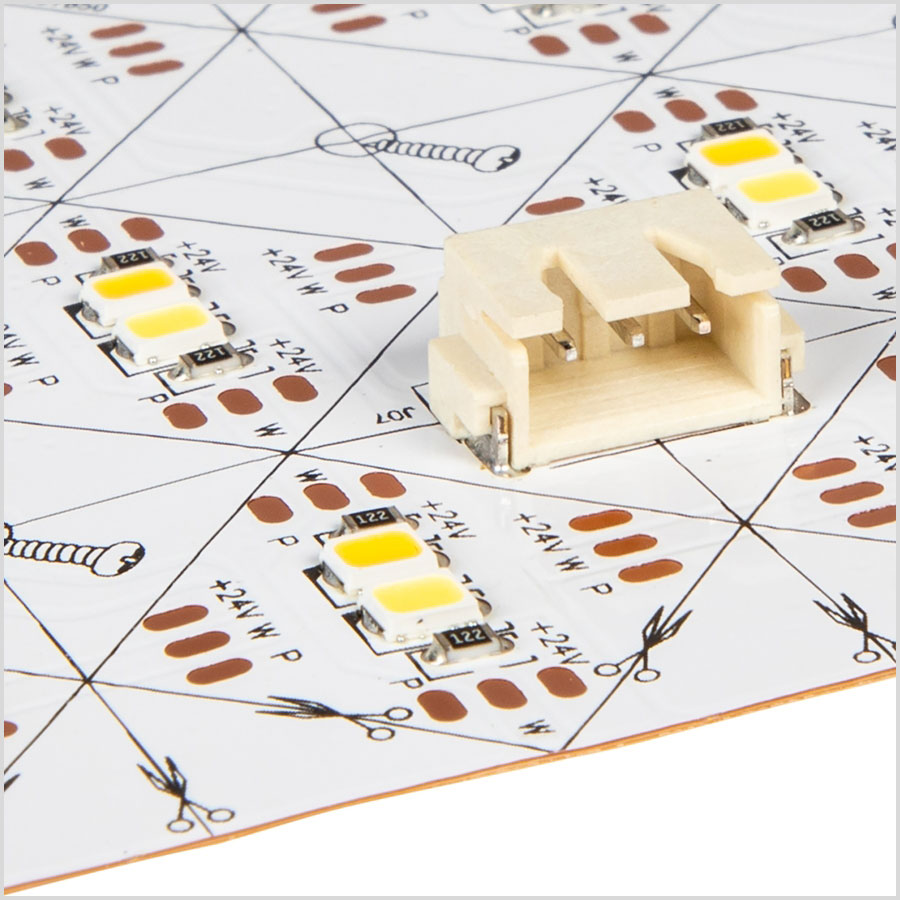

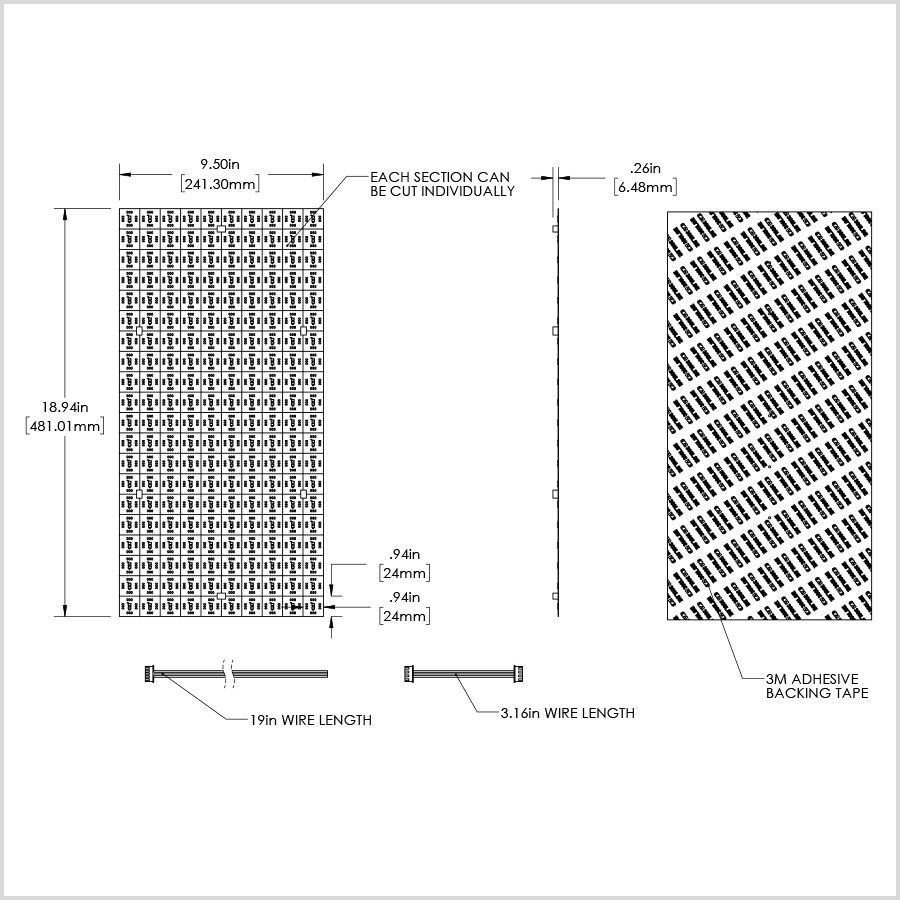

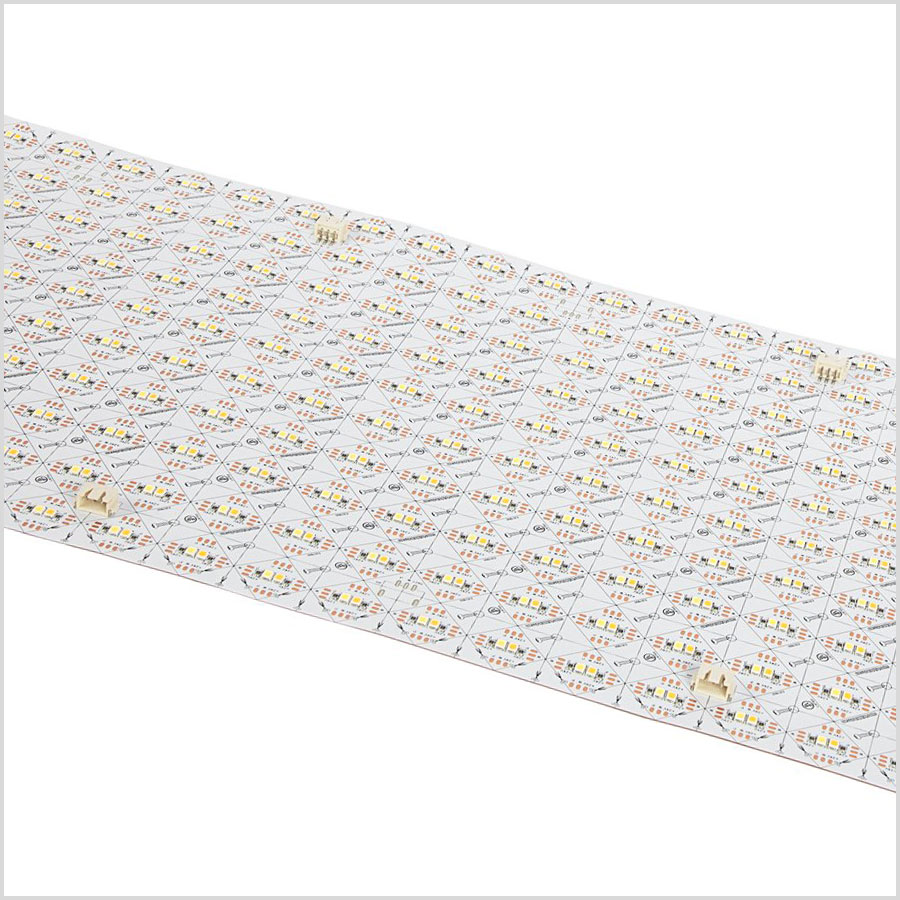

Wrap corners and trim to fit a unique shape with the Tunable White LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing or fasten it with screws at the indicated spots. The light sheet is tunable and can display a range of 2700K-6500K.

Product Details:
Segment size: 0.95" x 0.95"- 200 segments per sheet
Max Run with Class 2 wiring: 1.5 sheets

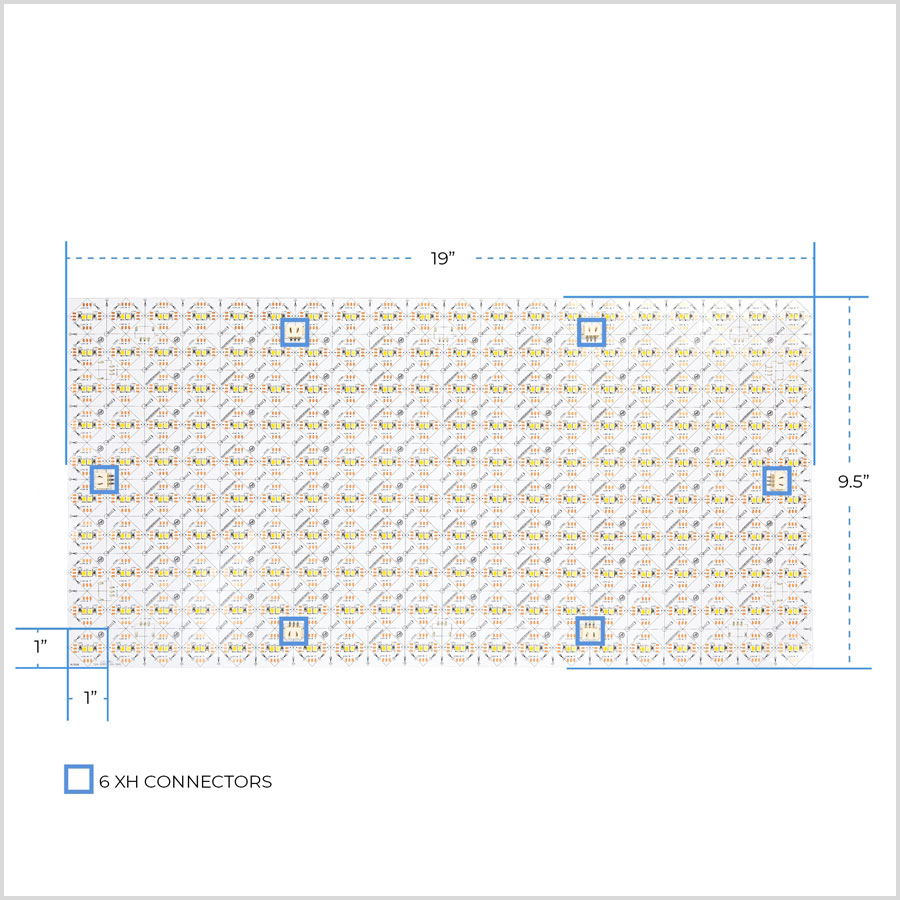

Input connection: 3-pin XH connector
Includes one 0.5m pigtail connector and one 8cm interconnect
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
CCT Value：     2700K-6500K
Certifications/Compliance：    UL Listed
CRI：    80+
Color/CCT：     Tunable CCT
Current Draw：     2.5 A
Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Efficacy：    88 lm/W
Enclosed Fixture Rated：    Yes
Finish：    White
Input Connection Type：    Pigtail, XH 3-Pin Connector
IP Rating：     IP20
LED Beam Angle：     120°
LED Type：    2835 SMD
LEDs per Segment：    2
Max Run (Class 2)：     1.5 Sheets
Operating Voltage：    24 VDC
Output Connection Type：    XH 3-Pin Connector
Power Consumption：    60 Watts
Rated Life (L70)：    50000 Hours
Segment Size：    0.95 n. x 0.95 in. (24 mm x 24 mm)
