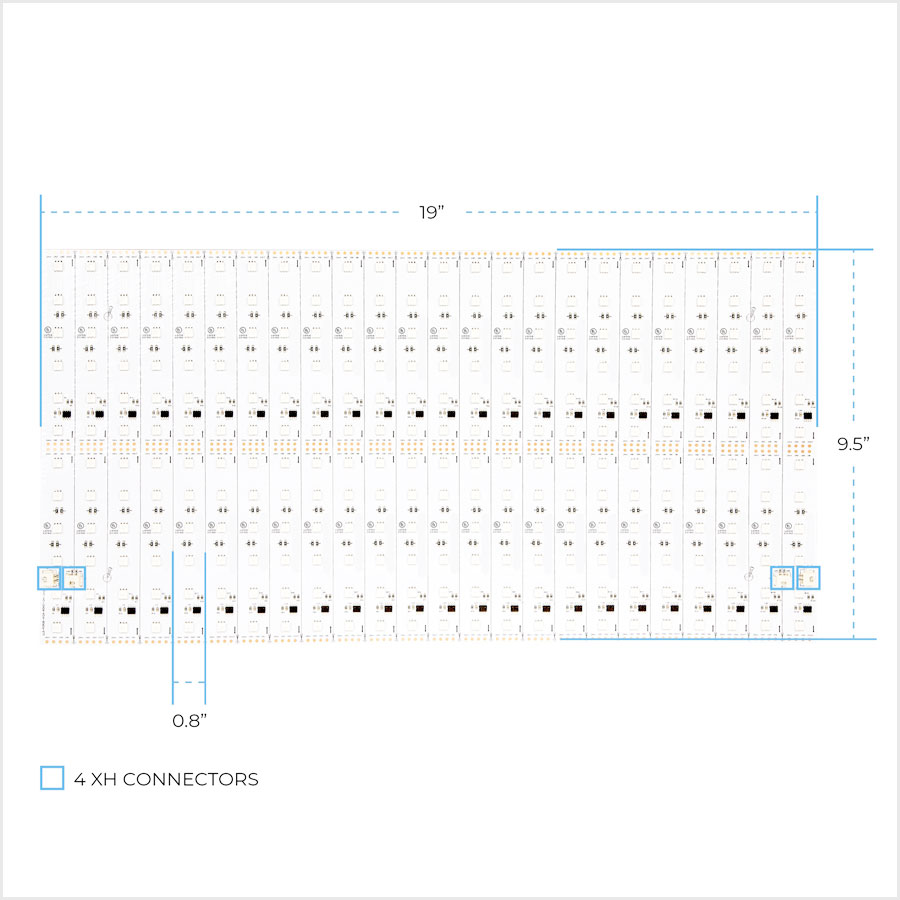

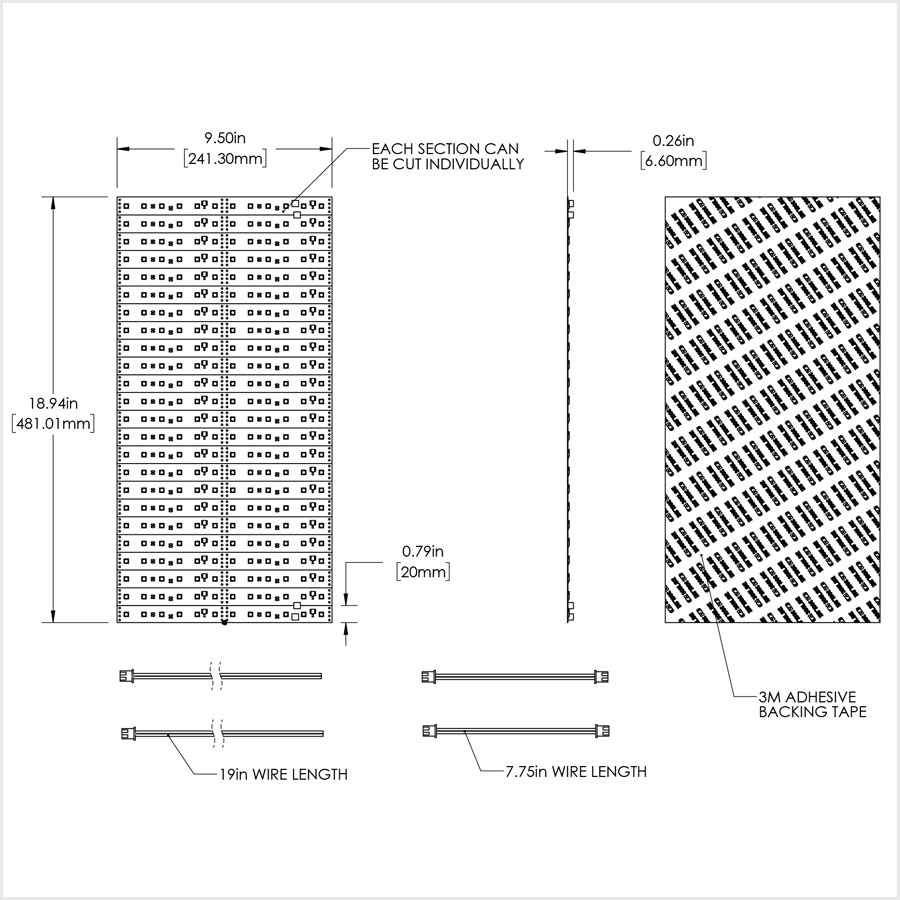

Wrap corners and trim with the Addressable RGB LED Light Sheet to fit unique shapes. To customize the flexible sheet, the 18.9” x 9.5” sheet can be cut along the rows' horizontal, vertical, or diagonal black lines. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable or connect using the built-in solder pads. To install, use the 3M™ adhesive backing or fasten it with screws at the indicated spots. This light sheet has addressable RGB capabilities, allowing the individual LED segments to be customized using a controller (sold separately)

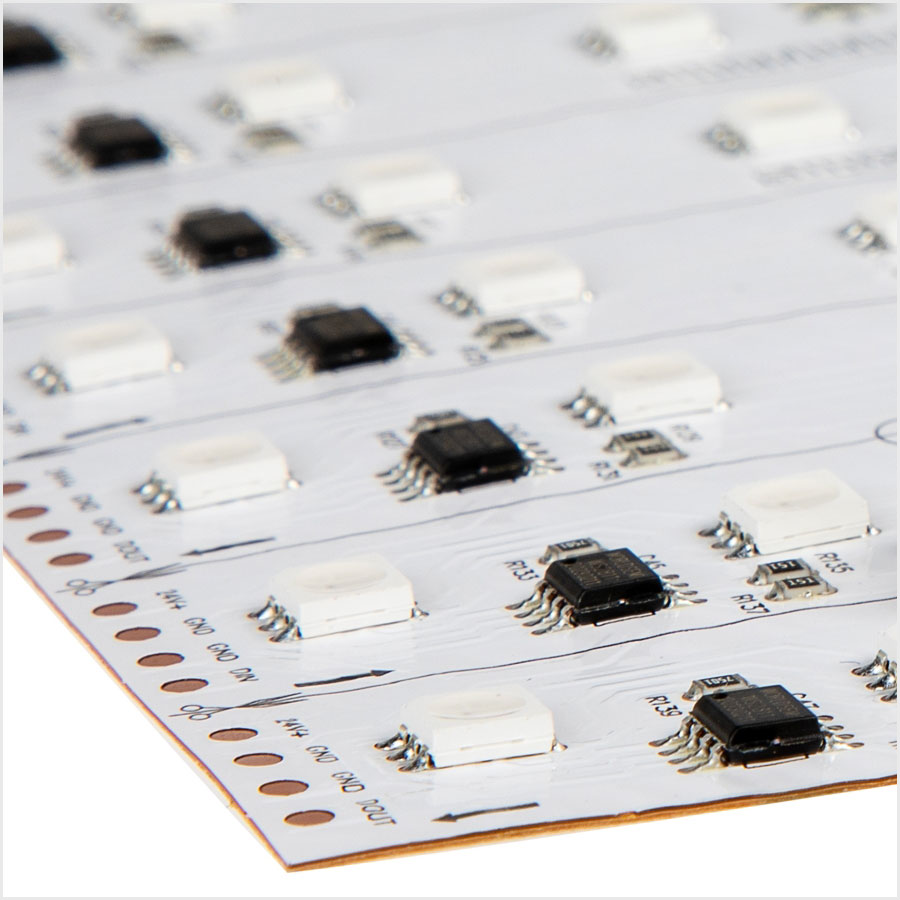

Note: Each LED is not addressable individually. The light sheet uses a WS2811 integrated circuit.

Product Details:
Segment size: 4.72" x 0.79"- 48 segments per sheet
On-board XH connections for plug-and-play use
Max Run with Class 2 wiring: 1.5 sheets
Input connection: two 2-pin XH connectors
XH connectors have a max current rating of 3A
PWM dimmable
24 VDC
UL Listed
​
Specifications
Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
Certifications/Compliance:    UL Listed
Color/CCT:     Addressable RGB
Current Draw:     2.5 A
Dimensions:    18.9in x 9.5in
Dimmable:    Yes
Enclosed Fixture Rated:    Yes
Finish:    White
Input Connection Type:    Pigtail, XH 2-Pin Connector
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    5050 SMD
LEDs per Segment:    6
Max Run (Class 2):     1.5 Sheets
Operating Voltage:    24 VDC
Output Connection Type:    XH 2-Pin Connector
Power Consumption:    60 Watts
Rated Life (L70):    36000 Hours
Segment Size:    4.72 in. x 0.79 in. (120 mm x 20 mm)
