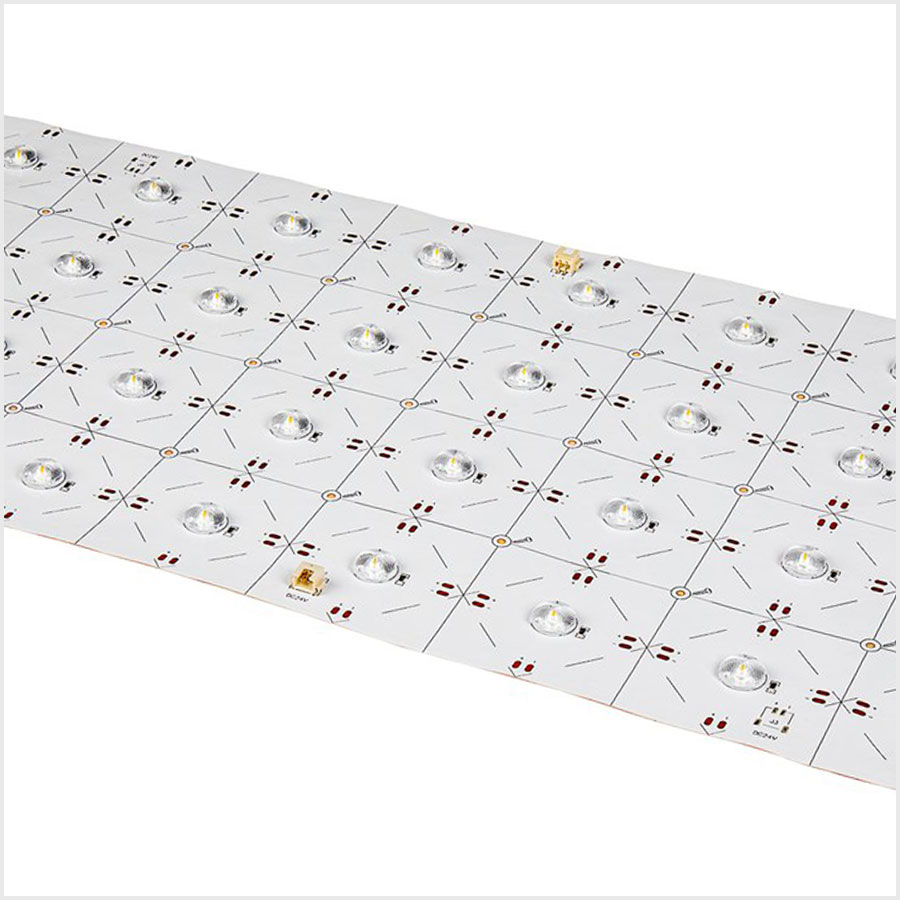

Trim to fit a unique shape and wrap corners with this 24V LED Light Sheet. This flexible sheet can be segmented in any unique shape simply by cutting along the horizontal, vertical, or diagonal black lines. LEDs' distribution ensures even light distribution, even in signs or backlighting with low clearance. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:

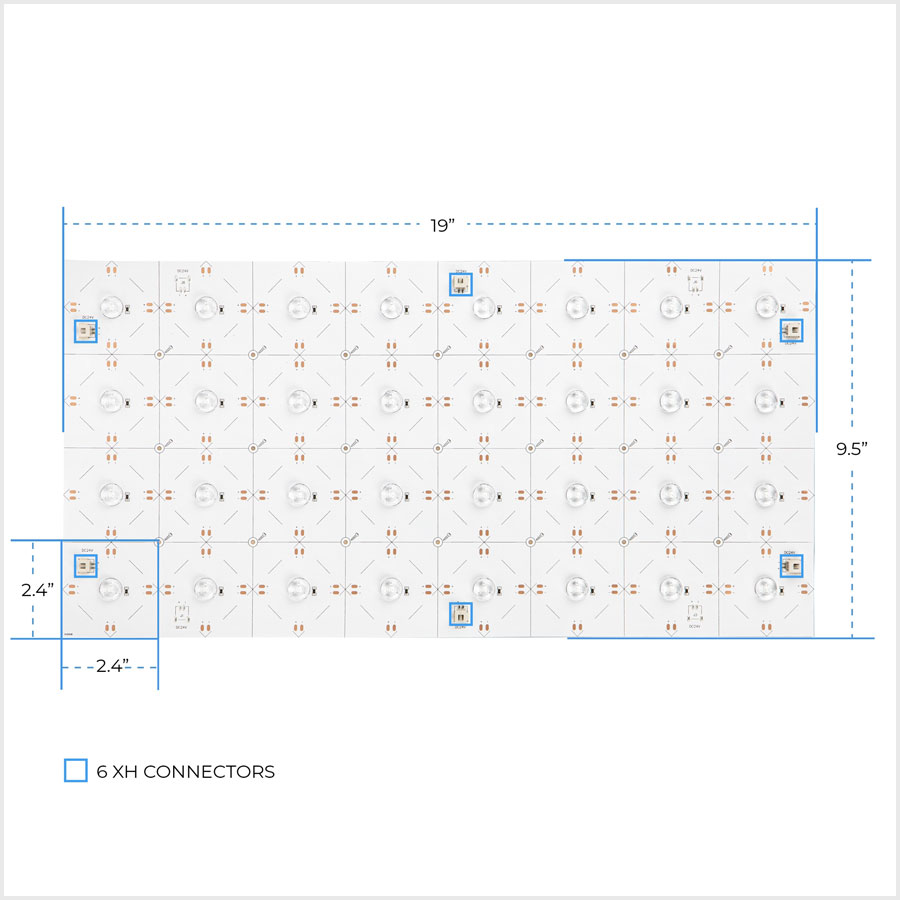

Segment size: 2.36" x 2.36"- 32 segments per sheet
Max Run with Class 2 wiring: 4.5 Sheets

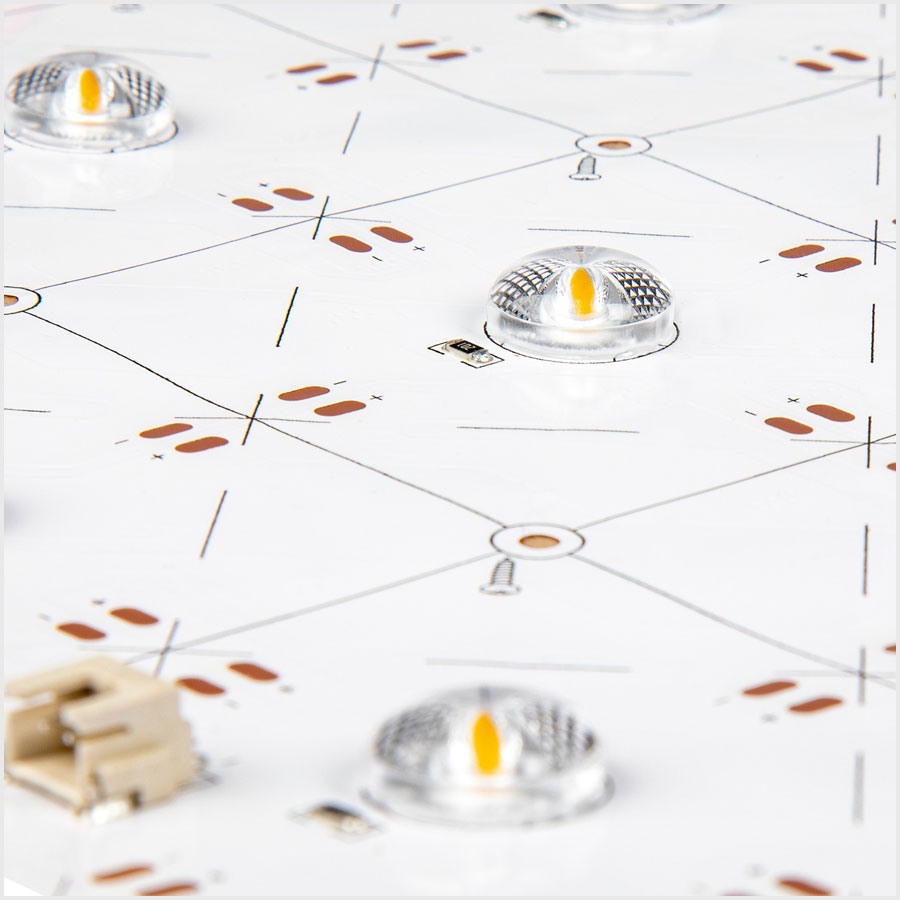

Input connection: 2-pin XH connector
Includes one 0.5m pigtail connector and one 8cm interconnect
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
Certifications/Compliance：    UL Listed
CRI：    80+
Current Draw：     833 mA

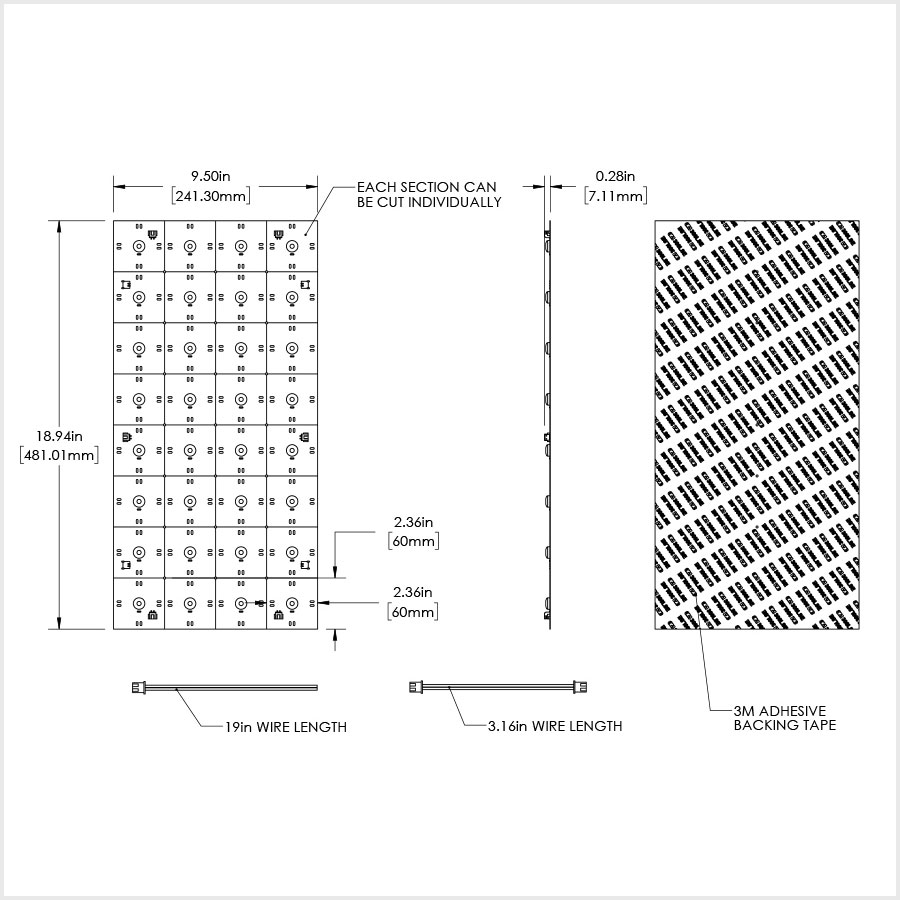

Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Enclosed Fixture Rated：    Yes
Finish：    White
Input Connection Type：    Pigtail, XH 2-Pin Connector
IP Rating:     IP20
LED Beam Angle:     180°
LED Type:    2835 SMD
LEDs per Segment:    1
Max Run (Class 2):     4.5 Sheets
Operating Voltage:    24 VDC
Output Connection Type:    XH 2-Pin Connector
Power Consumption:    20 Watts
Rated Life (L70):    50000 Hours
Segment Size:    2.36 in. x 2.36 in. (60 mm x 60 mm)
