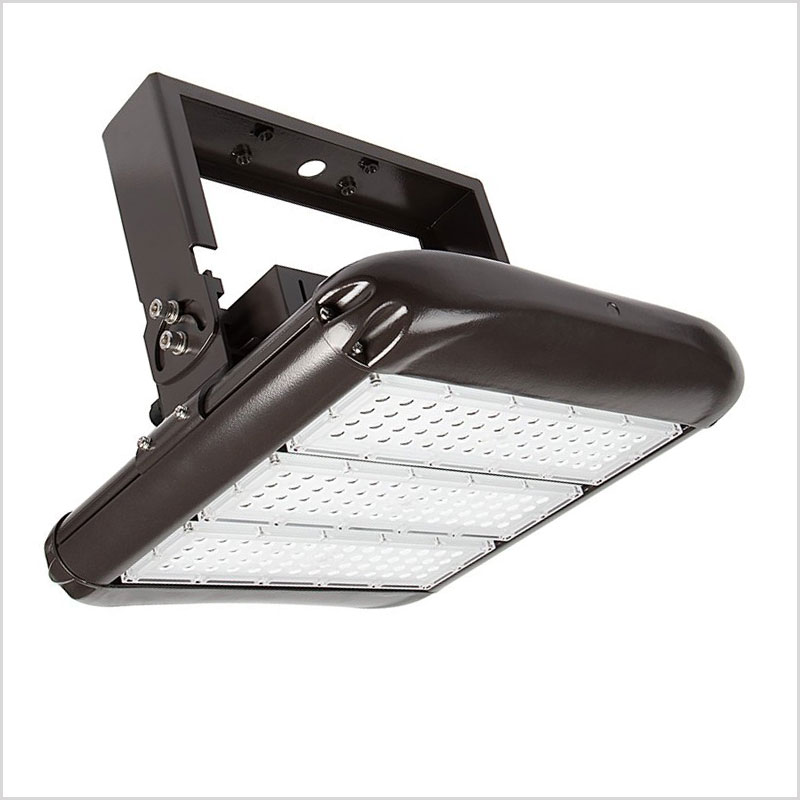

The HPAL2 series 200W LED high-power area flood light delivers 28,000 lumens of 5000K white light for commercial and industrial applications. Precision optics produce a wide Type V flood beam distribution for broad illumination. Independent modular LED engines and drivers protect lifespan with improved thermal management. Replace metal halide or HID luminaires with increased energy savings, better efficacy, and more compact housing. The included yoke mount accommodates high bay and floodlight applications. Several other optional mounting options are available.

Product Details:

• Aluminum housing
• Impact-resistant polycarbonate lens
• IP66 rated
• 90° beam angle - Type V
• Includes steel yoke bracket and driver cover
• 6 kV (L-N),10 kV (L/N-GND) integrated surge protection
• IK10 impact resistance
• 70+ CRI
• 5000K
• 100-277 VAC
• DLC 5.1 Premium, ETL Listed
• 5-year warranty

Specifications
Beam Angle:    90°
Brand:    Smart Bright LEDs
Comparable Wattage:    400 Watt Metal-Halide
CRI:     70+
Current Draw:    1.7 A @ 120 VAC, 720 mA @ 277 VAC
Dimmable:    Yes
Dimming Type:     1-10V
Efficacy:    140 lm/W
Environmental Rating:     Suitable for Wet Locations, Waterproof
Finish:    Bronze
Impact Resistance:    IK10
IP Rating:     IP66
LED Color:     Cool 5000K
LED Lifetime:    100000 Hours
Light Distribution:     Type V
Lumen:    28000 Lumens
Material:    Aluminum Housing, Polycarbonate Lens, Steel Bracket, Steel Driver Compartment
Mount Type:    Yoke Bracket
Operating Temperature:    -30~+45 °C (-22~+113 °F)
Photocell Options:     No Photocell
Power Consumption:    200 Watts
Power Factor:    ≥0.9
Product Weight:    17lb 5oz (7.85kg)
Standards And Certifications:     DLC Premium, ETL Listed
Voltage:    100-277 VAC
Warranty:    5 Year
