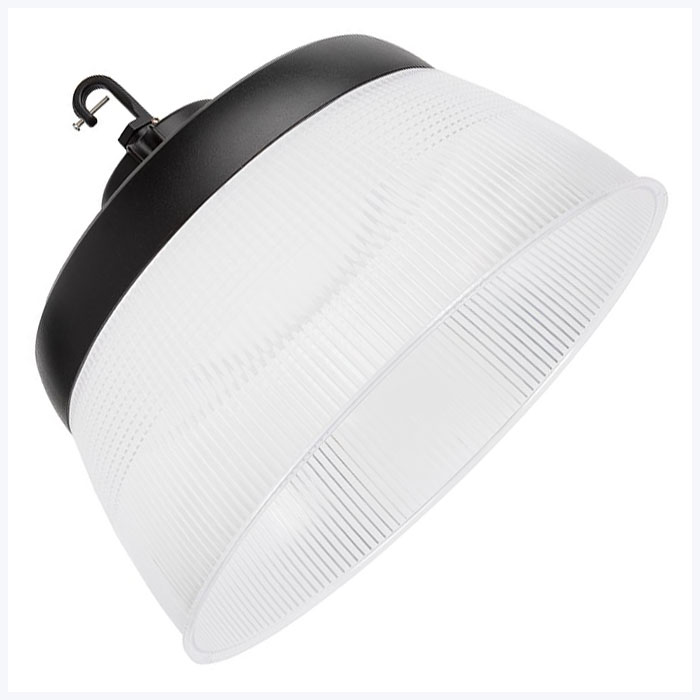

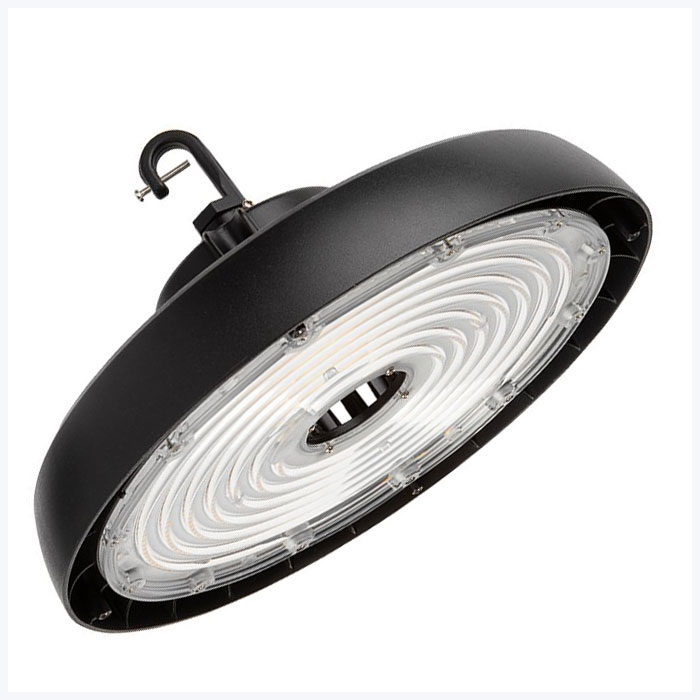

Provide even illumination for tall ceiling applications with UHBD-S1 series UFO LED High Bay. An improved alternative to traditional metal halides, the design is more compact and efficient. Low profile aluminum housing has built-in heat sinks for passive cooling. Powder coated exterior and IP65 rating resists corrosion and moisture. Integrated LEDs deliver up to 140 lumens per watt, with a polycarbonate lens designed to reduce glare.

Product Details:

• 0-10V dimmable
• 100-277 VAC
• Black powder coated aluminum housing
• Polycarbonate lens reduces glare
• 80° beam angle
• Safety cable provides additional mounting support
• Mounting hook and 20” power wire (18 AWG) included
• IP65 rated for wet conditions
• 5 year warranty
• DLC 5.1 Premium, Certified by UL
• 50000 hour (L70) lifespan
• Operational Temp: -40° -- 113°F (-40° -- 45°C)

​
Specifications
Ambient Operating Temperature:    -40~+45 °C (-40~+113 °F)
Beam Angle:    80°
Brand:    Smart Bright LEDs
Certifications/Compliance:     Certified by UL, DLC Premium
CRI：     80+
Dimmable：    Yes
Dimming Type：     0-10V
Efficacy：    140 lm/W
Environmental Rating ：    Suitable for Wet Locations, Waterproof
Equivalency：    750 Watt Metal-Halide
Finish：    Black
Input Connection Type：    Pigtail
IP Rating：    IP65
Intensity：    28000 Lumens
Microwave Motion Sensor：    Optional
Operating Voltage：    100-277 VAC
Power Consumption：    200 Watts
Power Factor：    ≥0.9
Product Materials：    Aluminum, Polycarbonate
Product Weight：    6lb 15oz (3.15kg)
Rated Life (L70)：    50000 Hours
Warranty：    5 Year
Wire Gauge：    18 AWG
