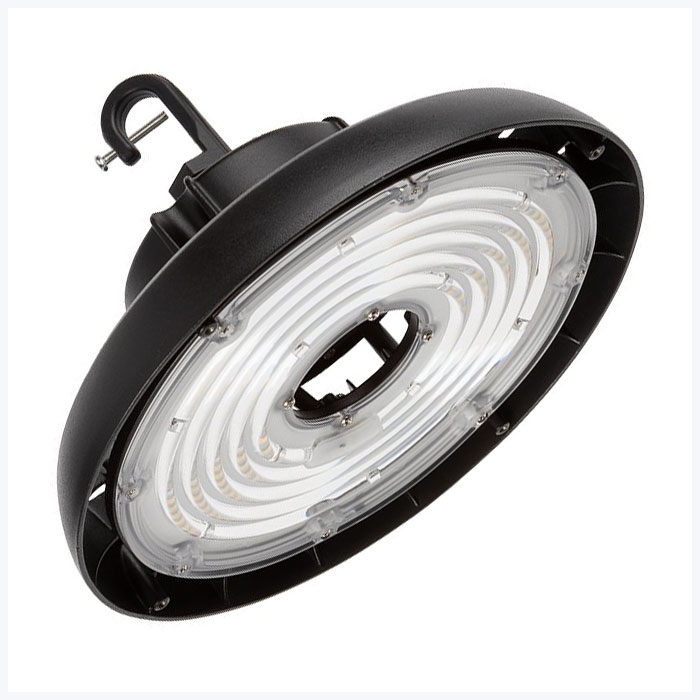

Provide even illumination for high ceiling applications with UHBD series UFO LED High Bay. An improved alternative to traditional metal halides, the design is more compact and efficient. Low profile aluminum housing has built-in heat sinks for passive cooling. Powder coated exterior and IP65 rating resists corrosion and moisture. Integrated LEDs deliver up to 140 lumens per watt, with a polycarbonate lens designed to reduce glare.

Product Details:

• 0-10V dimmable
• 100-277 VAC
• Black powder coated aluminum housing
• Polycarbonate lens reduces glare
• 80° beam angle
• Safety cable provides additional mounting support
• Mounting hook and 20” power wire (18 AWG) included
• IP65 rated for wet conditions
• 5 year warranty
• DLC 5.1 Premium, Certified by UL
• 50000 hour (L70) lifespan
• Operational Temp: -40° -- 113°F (-40° -- 45°C)

​
Specifications
Ambient Operating Temperature:    -40~+45 °C (-40~+113 °F)
Beam Angle:    80°
Brand:    Smart Bright LEDs
Certifications/Compliance :    Certified by UL, DLC Premium
CRI:     80+
Current Draw:    360 mA @ 277 VAC, 830 mA @ 120 VAC
Dimmable:    Yes
Dimming Type:     0-10V
Efficacy:    140 lm/W
Environmental Rating:     Suitable for Wet Locations, Waterproof
Equivalency:    250 Watt Metal-Halide
Finish:    Black
Input Connection Type:    Pigtail
IP Rating:    IP65
Intensity:    14000 Lumens
Microwave Motion Sensor:    Optional
Operating Voltage:    100-277 VAC
Power Consumption:    100 Watts
Power Factor:    ≥0.9
Product Materials:    Aluminum, Polycarbonate
Product Weight:    4lb 2oz (1.87kg)
Rated Life (L70):    50000 Hours
Warranty:    5 Year
Wire Gauge:    18 AWG
