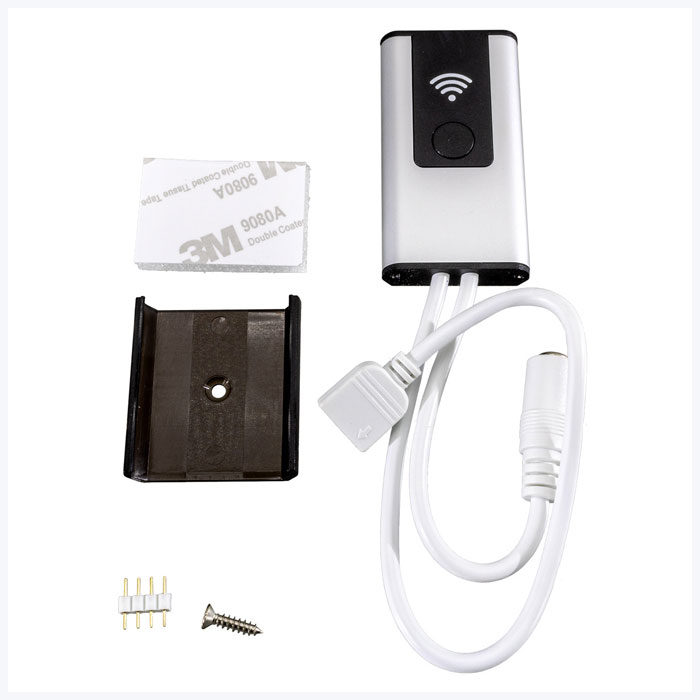

This Wi-Fi/Bluetooth LED controller lets you operate RGB LED strip lights with your Alexa or Google Assistant-enabled devices or your smartphone. Link the Smart Life app by Tuya with your Amazon Echo, Google Home, etc., and adjust brightness or turn lights on/off. Additional features include conditional programming, timers, scheduling, mode selection memory, and a built-in microphone. For Bluetooth functionality, connect the controller to an existing 2.4Ghz Wi-Fi network for initial setup. After setup is complete, controller can be operated on Bluetooth or 2.4Ghz Wi-Fi network. The plug-and-play Wi-Fi LED controller has a maximum load capacity of 6 amps (12 VDC) and 3 amps (24 VDC). Female DC barrel connector for power and 4 wire pigtail for strip light connection Barrel connector adapters are available for pigtail setup. Install the controller with the included screw and bracket or with the included 3M adhesive mounting pad.

Product Details:

• Works with Smart Life app on compatible smartphones
• Operated with in range of user’s 2.4Ghz Wi-Fi network
• Maximum load of 6 amps (12 VDC) and 3 amps (24 VDC)
• 3 output channels
• 12-24 VDC

Specifications
Amps Per Channel:    3A @ 24VDC, 6A @ 12VDC
Channels:    3 Channels
Control Type:    Smartphone (Wi-Fi or Wi-Fi Gateway), Smartphone (Bluetooth)
Environmental Rating:     Non-weatherproof
Input Connection Type:    5.5 mm x 2.1 mm DC Barrel
IP Rating:    IP20
Material:    Aluminum, Polycarbonate
Operating Temperature:    -10~+50 °C (14~+122 °F)
Power Consumption:    72 Watts
Standards And Certifications:     CE
Smart Home Ecosystem:    Amazon Alexa, Google Home
Voltage:    12-24 VDC
Warranty:    2 Year
