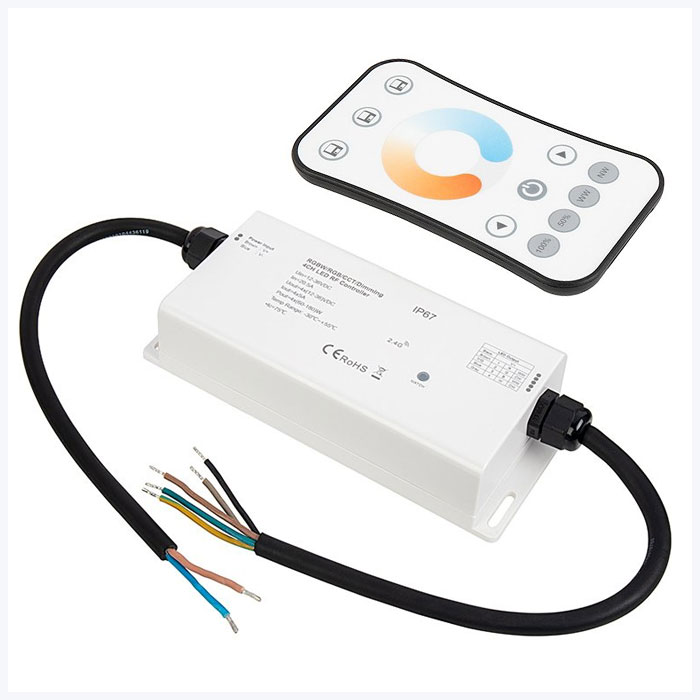

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to adjust Tunable White LEDs to desired color temperature.

Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.

Product Details:
Input Voltage Range: 12–36 VDC
Max Input Current: 20.5 A
Max. Output Current: 5 A per channel (20 A total)
Output power 4 x 180-watts
PWM Frequency 500Hz
Transmission Range: 98ft
Repeats signal to another receiver with in 98ft
4096 levels for smooth 0-100% dimming
Protects against overheat, overload, and short circuit

Specifications
Ambient Operating Temperature：    -30~+55 °C (-22~+131 °F)
Amps Per Channel：    5 Amps/CH
Battery Type：    CR2032 x1 (included)
Certifications/Compliance：    CE
Channels：    4 Channels
Control Type：    Handheld (RF) Remote
Input Connection Type：    Pigtail
Input Voltage：    12-36 VDC
IP Rating：     IP67
Max Input Current：    20.5 A
Output Current Draw per Channel：    20 A (5 A x 4 channels*)
Output Voltage：    12-36 VDC
Remote Range：    Up to 98.4 ft (30 m)
Warranty：    5 Year
