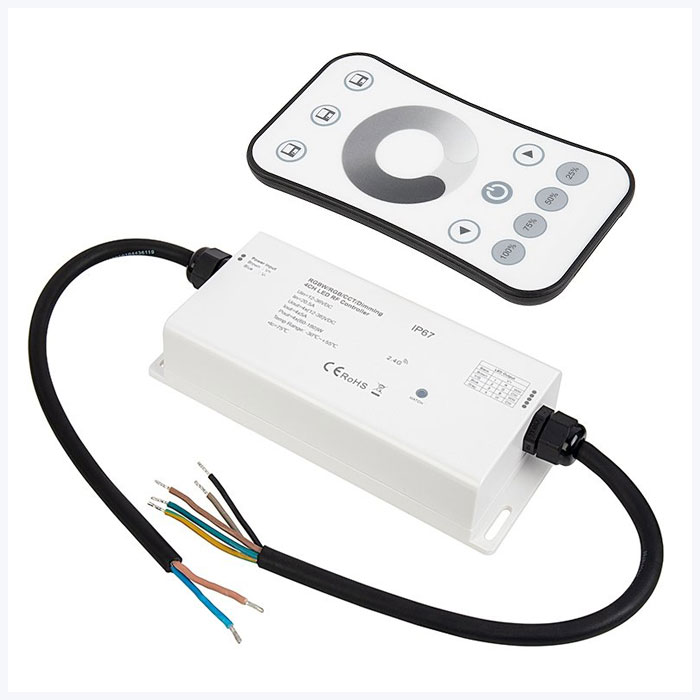

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to dim single color LED lights between 0-100%.

Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.

Product Details:
Input Voltage Range: 12–36 VDC
Max Input Current: 20.5 A
Max. Output Current: 5 A per channel (20 A total)
Output power 4 x 180-watts
PWM Frequency 500Hz
Transmission Range: 98ft
Repeats signal to another receiver with in 98ft
4096 levels for smooth 0-100% dimming
Protects against overheat, overload, and short circuit
​
Specifications
Ambient Operating Temperature：    -30~+55 °C (-22~+131 °F)
Amps Per Channel：    5 Amps/CH
Battery Type：    CR2032 x1 (included)
Certifications/Compliance：    CE
Channels：    4 Channels
Control Type：    Handheld (RF) Remote
Input Connection Type：    Pigtail
Input Voltage：    12-36 VDC
IP Rating：     IP67
Max Input Current：    20.5 A
Output Current Draw per Channel：    20 A (5 A x 4 channels*)
Output Voltage：    12-36 VDC
Remote Range：    Up to 98.4 ft (30 m)
Warranty：    5 Year
