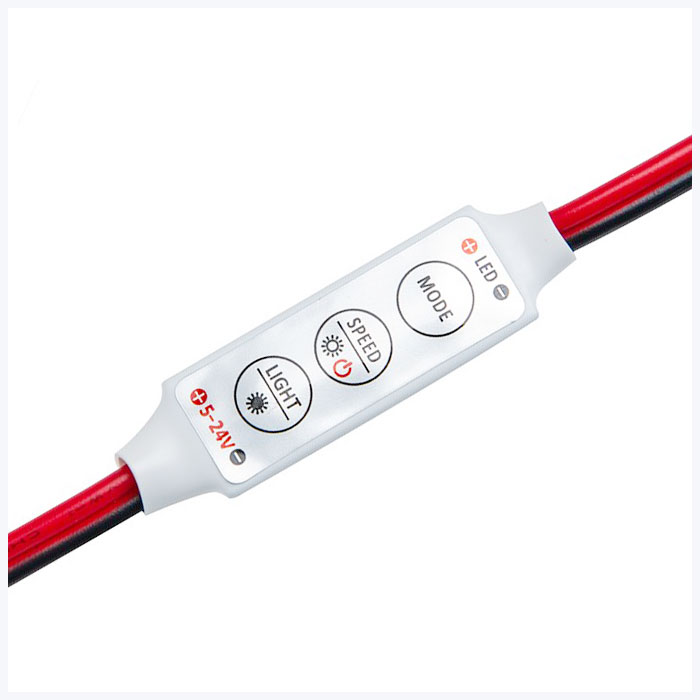

Single Color LED Controller with Dynamic Modes - Mini LED Dimmer

(1 Reviews) | Write a review

SKU: MLD-5A

Universal single color mini LED dimmer can dim any 5~24V DC LED product from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Retains last setting when power is cycled. Attached 4" power input and controller output wire leads. Suitable for vehicles

Specifications
Amps:   5 Amps
Amps Per Channel:   5 Amps/CH
Channels:   1 Channel
Control Type:   In-line Wired
Input Connection Type:   Pigtail
Voltage:   5-24 VDC
Warranty:   2 Year
