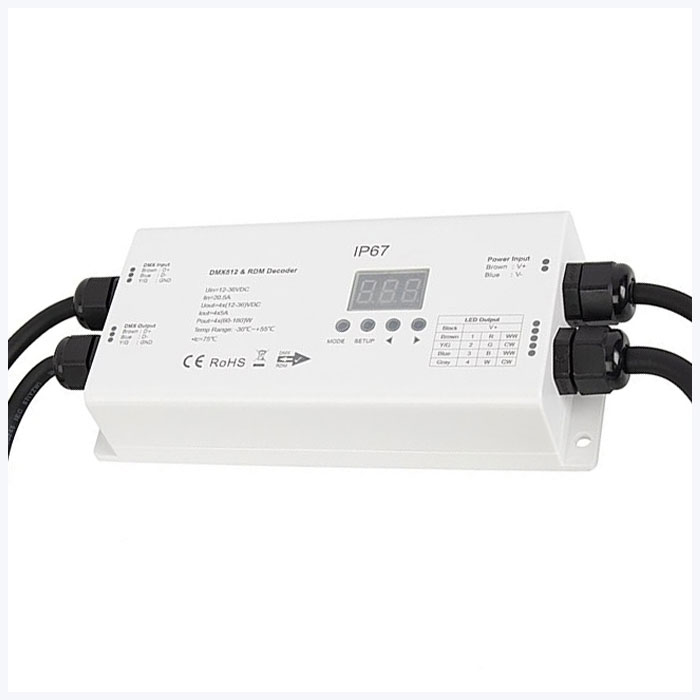

DS series DMX512 Decoder allows LED lights to be connected to and controlled with DMX systems. with a fully waterproof case, the device can be used both indoor or outdoor with out the need for a protective enclosure. Digital display with simple buttons make it easy to control LEDs like strip lights or landscape fixtures. Select modes and assign addresses for up to 4 channels, 5 amps per channel, with a maximum power of 60-watts at 12 VDC or 180-watts at 36 VDC.

Pair with a Waterproof LED Strip.

Product Details:

• 1-4 channel configuration
• Wire length on each end: 10.5"
• DMX IN and OUT
• DMX address selction LED display
• 60W-180W
• 12 VDC, 24 VDC, 36 VDC
• Rated IP67 for wet locations
• RoHs, CE certificate
• 5 year warranty

Specifications
Ambient Operating Temperature    -30~+55 °C (-22~+131 °F)
Amps    20 Amps
Amps Per Channel    5 Amps/CH
Certifications/Compliance    CE
Channels    4 Channels
Control Type    RDM Decoder, DMX512
DMX In/Out    Pigtail
Input Connection Type    Pigtail
Input Voltage    12 VDC
IP Rating     IP67
Voltage    12-36 VDC
Warranty    5 Year
