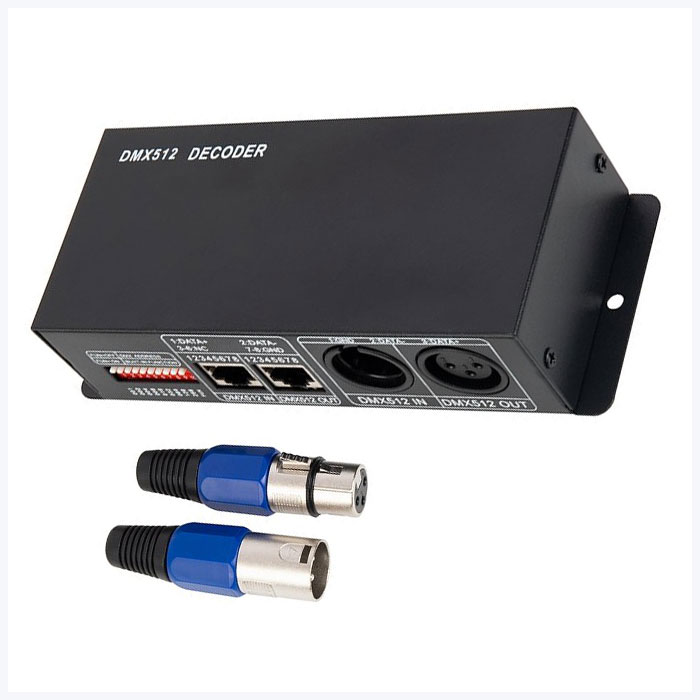

LED DMX512 Decoder - 3 Channel - 8 A/CH - 12-24 VDC
The DMX512 decoder can control up to 3 different LED constant voltage products or any one RGB light bar or strip. Run the decoder under DMX512 digital control signals using the RJ45 or XLR3 input/output interfaces. For manual use, set the starting address of the driver using the DIP switches. Connect up to 8 amps per channel- 15 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.
Product Details:
- RJ45 Input/Output
- XLR3 Input/Output
- 12 VDC: 96W per channel, 180W total
- 24 VDC: 192W per channel, 360W total
Specifications
Amps： 15 Amps
Amps Per Channel： 8 Amps/CH
Channels： 3 Channels
Control Type： DMX512
DMX In/Out： RJ45, XLR3
Environmental Rating： Non-weatherproof
Input Connection Type： Screw Terminals
IP Rating: IP20
Material: Polycarbonate
Operating Temperature: -20~+60 °C (-4~+140 °F)
Power Consumption: 180W @ 12 VDC, 360W @ 24 VDC
Voltage: 12-24 VDC
Warranty: 2 Year
