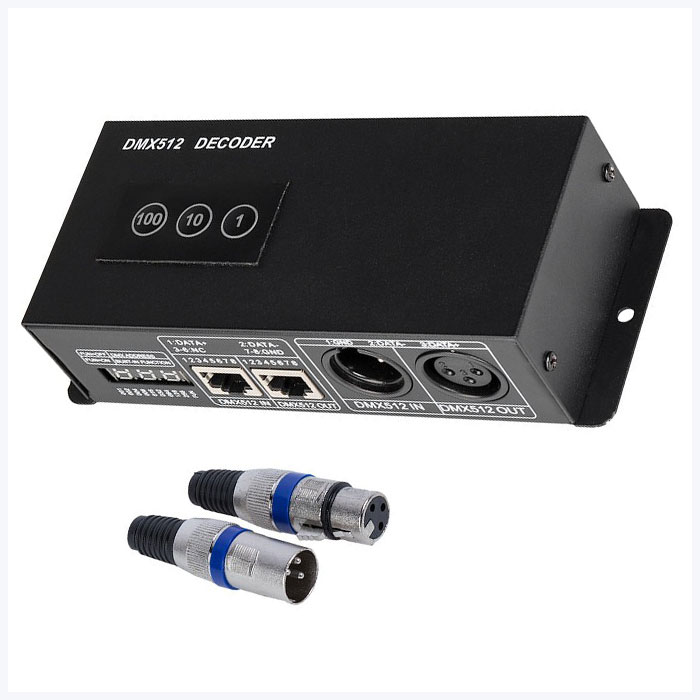

    LED DMX 512 Decoder - 8 Amp 3 Channel - Digital Display - DMX2-3CH-8A

      (10 Reviews) | Write a review
    SKU: DMX2-3CH-8A
    Discontinued
    Starting at: $39.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Sep,19 and Wed,Sep,25. order with 2days,9hrs and 31 min.

    This DMX 512 decoder can control up to 3 different single-color 12-24 VDC LED products or any 1 RGB LED light bar or strip. The decoder can run in stand-alone mode using address code buttons or under DMX512 digital control signals using XLR-3 or RJ45 DMX512 input/output interfaces. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by a DMX512 console. The decoder allows for 256 brightness levels. Maximum load is 8 amps per channel. Includes male and female 3-pin XLR connectors.

    Specifications
    Ambient Operating Temperature：    -40~+85 °C (-40~+185 °F)
    Amps：    24 Amps
    Amps Per Channel：    8 Amps/CH
    Channels：    3 Channels
    Control Type：    DMX512
    DMX In/Out：    RJ45, XLR3
    Input Connection Type：    Screw Terminals
    IP Rating：     IP20
    Voltage：    12-24 VDC
    Warranty：    Lifetime
