iTouch 12~24 Volt DC Touch LED Dimmer - 6 Amps
SKU:
TCDP-6A

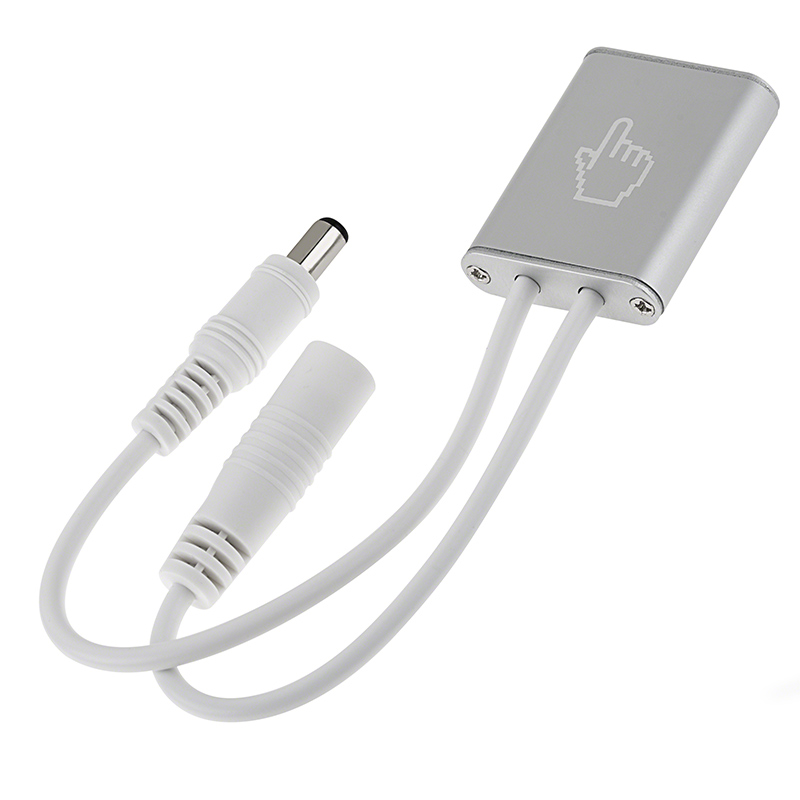

Universal single channel LED dimmer can turn on and off and dim any 12~24VDC LED products from 10 to 100% using Pulse Width Modulation (PWM) touch sensitive control. Maximum load is 6 Amps. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series Power Supplies. 3M double sided adhesive included. Price for each.

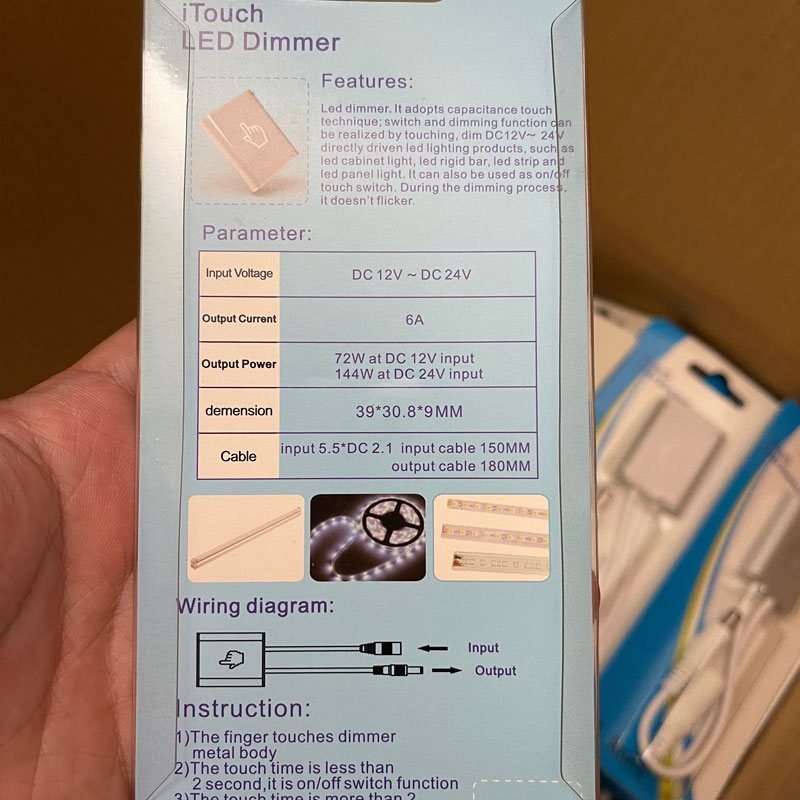

Specifications
Amps: 6.00 Amps
Connection Type: CPS Female/CPS Male
Dim Control: Touch Control
Input Voltage DC: 12 ~ 24 VDC
Polarity Sensitive: Yes
Remote Control: In-line
Standards And Certifications: RoHS Compliant
Type: Dimmers/In-line Dimmer/Single Color Dimmer
Package Dimensions: 6.7" (17cm) x 3.14" (8cm) x 0.53" (1cm)
Package Weight: 1.59oz (0.05kg)
