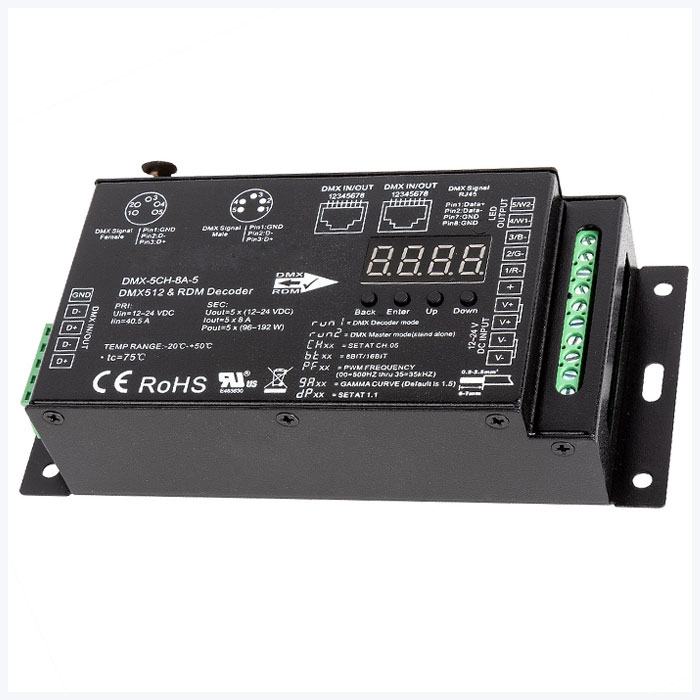

The 5-channel LED DMX RDM digital decoder and master is a versatile LED lighting controller. In master mode, control the brightness, speed, and selection from 31 programs for custom lighting. It features RDM bi-direction communication enabling it to detect and display decoder information from your lights and set DMX addresses. This low-voltage DMX decoder controls up to five channels. It converts DMX512 signal to control single-color, RGB, RGBW, RGB+W, RGB+CCT, and tunable white LED lights with an easy-to-use digital interface. It has a maximum of 8A per channel and a total of 960 watts at 24 VDC. The digital display shows the selectable DMX address, PWM frequency, 8-bit / 16-bit output resolution, and dimming curve settings. The PWM frequency is adjustable from 500 Hz to 35 kHz (1 kHz default) for flicker-free lighting in video and photography applications. Ideal for theater and live sound DJ performances. It includes one male and one female XLR 5-pin terminal and two RJ45 in/out terminals.

Product Details:

• Screw terminal, RJ45, and XLR5 connections for input and output
• PWM frequency: 500 Hz to 35 kHz (1 kHz default)
• Dimming curve gamma value: 0.1 - 9.9 (1.5 default)
• 12 VDC - 96 watts per channel
• 24 VDC - 192 watts per channel
• Up to 960 watts total
• Short circuit protection

​
Specifications
Ambient Operating Temperature:    -20~+50 °C (-4~+122 °F)
Amps:    40 Amps
Amps Per Channel:    8 Amps/CH
Channels:    5 Channels
Control Type:    RDM Decoder, DMX512
DMX In/Out:    RJ45, Screw Terminals, XLR5
Environmental Rating:    Non-weatherproof
Input Connection Type:    Screw Terminals, RJ45, XLR5 (Male)
IP Rating:     IP20
Max Input Current:    40.5 A
Product Material(s):    Steel
Voltage:    12-24 VDC
Warranty:    2 Year
