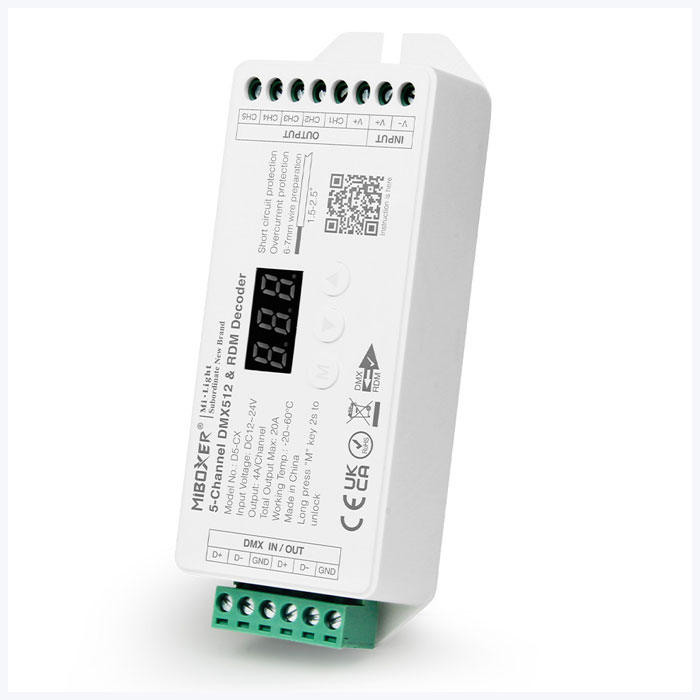

5 Channel LED DMX512 and RDM Decoder - 4 A/CH - Digital Display - 12-24 VDC

(5 Reviews) | Write a review

SKU: D5-CX

This 5-channel DMX512 and RDM decoder has the ability to decode and control up to 5 different LED products or one RGB+CCT LED strip light. Decoder runs 4 amps per channel, totaling 20 amps or 480W at 24 VDC. Adjust the Gamma dimming curve to either linear or logarithmic for precise dimming. Select between an optional high PWM frequency or a low frequency. Set decoder through the digital display.

Product Details:

Screw terminal connections for input and output
Optional PWM frequency: 2000hz or 500hz
Gamma dimming: 1.0 Linear dimming or 1.6 Logarithmic dimming
12 VDC: 48W per channel, 240W total
24 VDC: 96W per channel, 480W total
Short circuit protection, overcurrent protection, and anti-reverse protection

Specifications
Ambient Operating Temperature:   -20~+60 °C (-4~+140 °F)
Amps:   20 Amps
Amps Per Channel:   4 Amps/CH
Certifications/Compliance:   CE, UKCA
Channels:   5 Channels
Control Type:   RDM Decoder, DMX512
DMX In/Out:   Screw Terminals
Environmental Rating:   Non-weatherproof
Finish:   White
Input Connection Type:   Screw Terminals
IP Rating:    IP20
Max Input Current:   20.5 A
Product Material(s):   Polycarbonate
Supported Smart Phone Apps:   MiBoxer
Voltage:   12-24 VDC
Warranty:   2 Year
