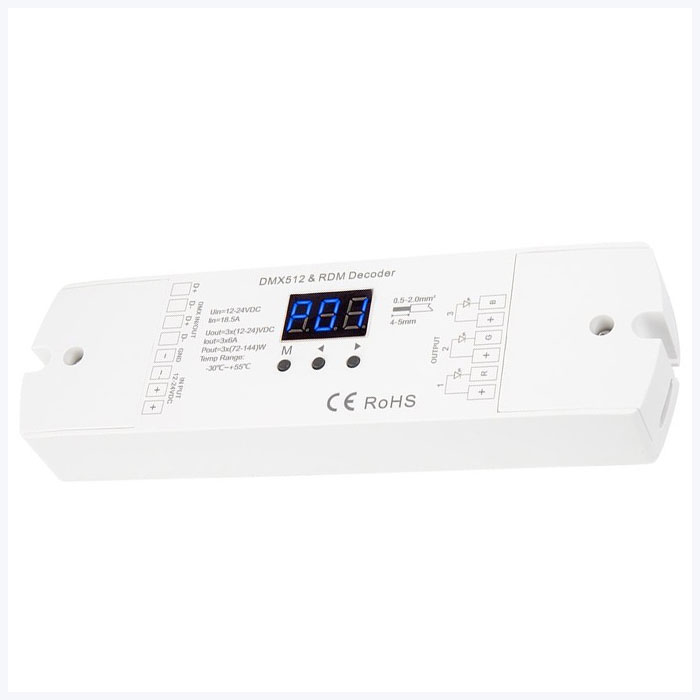

DS series 3 Channel DMX Decoder allows up to 3 channels of LEDs to be controlled from existing DMX systems. It features both DMX decoder and master functions that are easy to switch between. RDM bi-directional communication enables the DMX console to detect and display decoder information and set DMX addresses. with a total of 3 channels, it allows a max of 6A and 144W per channel. Stand-alone function works as an RGB controller when no DMX signal is present. This feature includes 30 built-in RGB programs with adjustable speed and brightness levels.

Product Details:

• 12 VDC, 24 VDC
• Green terminal DMX signal IN and OUT
• Max load current 18A
• PWM frequency 2000/500Hz selectable
• Operating temperature: -22°–131° F (-30°–55° C)
• CE certificate
• Protected against: overheat, overload, and short circuit protection
• Rated IP20 for dry locations

​
​Specifications
Ambient Operating Temperature:    -30~+55 °C (-22~+131 °F)
Amps:    18 Amps
Amps Per Channel:    6 Amps/CH
Certifications/Compliance:    CE
Channels:    3 Channels
Control Type:    RDM Decoder, DMX512
DMX In/Out:    Screw Terminals
Input Connection Type:    Screw Terminals
Input Voltage:    12-24 VDC
IP Rating:     IP20
Max Input Current:    18.5 A
Output Current Draw per Channel:    6 A per channel (x3)
Product Material(s):    Plastic
Voltage:    12-24 VDC
Warranty:    5 Year
