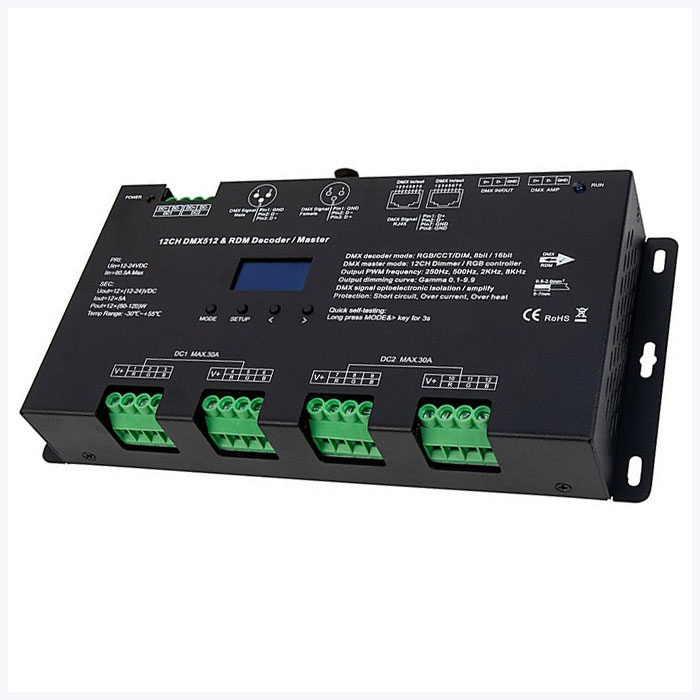

DS series 12 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. with a total of 12 channels, it allows a max of 5A and 120W per channel for controlling larger projects.

Selectable 16-bit (65536 levels) or 8-bit (256 levels) grey levels customize the smoothness of color fades. Choose between 4 PWM frequencies, with a maximum of 8000Hz, to reduce flicker and enhance quality for audiovisual applications. Settings and features are easily accessible with OLED display menus and operated with four control buttons. 3-pin XLR, RJ45, and green terminal DMX interface with photoelectric isolation and signal amplifier function improve signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. The stand-alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes ten built-in RGB programs with adjustable speed and brightness levels.

Product Details:

• Easy operation with an OLED display and four buttons
• PWM frequency 250/500/2000/8000Hz selectable
• 16bit (65536 levels) /8bit (256 levels) grey level selectable
• Output dimming curve gamma value 0.1-9.9 selectable
• Protects against over-heat, over-load, and short circuit
• 1-12 channel configuration
• Max load current: 60.5A
• 3-pin XLR, RJ45, and screw post green terminals
• DMX address selection OLED display
• Max output per channel: 60W at 12V or 120W at 24V
• Rated IP20 for dry locations
• RoHs, CE certificate, FCC
• 5-year warranty

Specifications
Ambient Operating Temperature:    -30~+55 °C (-22~+131 °F)
Amps Per Channel:    5 Amps/CH
Certifications/Compliance:    CE, FCC
Channels:    12 Channels
Control Type:    RDM Decoder, DMX512
Dimensions:    9.7" x 4.57" x 1.55"
DMX In/Out:    RJ45, Screw Terminals, XLR3
Input Voltage:    12-24 VDC
IP Rating:     IP20
Max Input Current:    60.5 A
Output Current Draw per Channel:    5 A x 12 CH, max 60 A
Product Weight:    1lb 15oz (0.88kg)
Voltage:    12-24 VDC
Warranty:    5 Year
