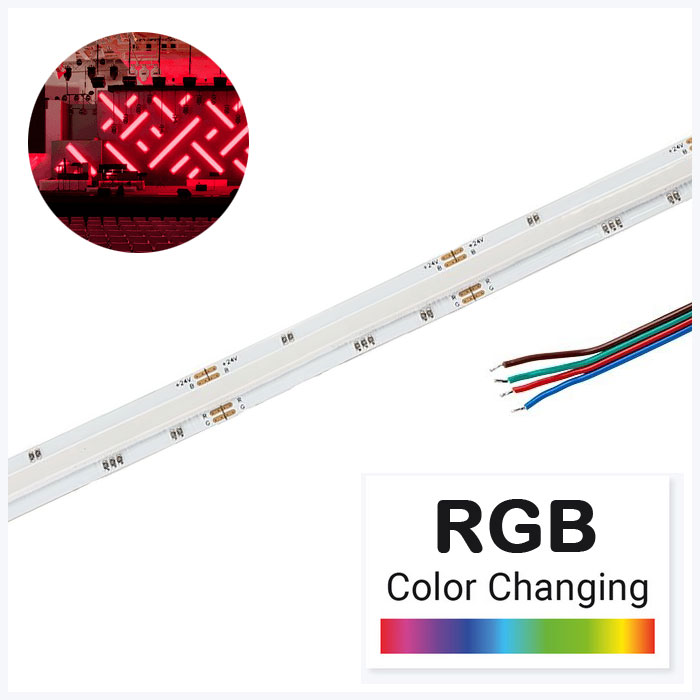

    5m RGB COB LED Strip Light - COB Series LED Tape Light - 24V - IP20

      (3 Reviews) | Write a review
    SKU: STN-CRGB-O63A-12R5M-24V
    Discontinued
    Starting at: $299.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,23 and Fri,Nov,29. order with 2days,9hrs and 31 min.

    COB series LED Strip Light uses chip-on-board technology to create continuous colorful RGB lighting. The high density of LEDs produces a seamless linear light with out the need of a diffused cover. Dotless illumination is ideal for reflective surfaces such as granite countertops, tile floors, and more. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges. Pair with a controller (sold separately) to customize color tone and settings.

    Product Details:

    • 3M™ adhesive backing for surface mounting
    • Max Run: 16.4ft (5m)
    • Strip width measures 12mm
    • 0-100% dimmable
    • 180° beam angle
    • 4-wire pigtail connection
    • Cuttable segment length: 2.19 in. (55.55 mm)
    • UL Listed
    • 5 year warranty

    ​
    Specifications
    Ambient Operating Temperature:    -20~+40 °C (-4~+104 °F)
    Certifications/Compliance:    UL Listed
    Color/CCT:     RGB
    Current Draw:     3.1 A
    Current Draw per Foot:     191mA
    Dimmable:    Yes
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    Finish:    White
    Input Connection Type:    Pigtail
    IP Rating:     IP20
    LED Beam Angle:     180°
    LED Density:    345 LEDs/ft
    LED Type:    COB (chip-on-board)
    LEDs per Segment:    63
    Length:    16.4ft (5m)
    Max Run (Class 2):     Up to 19.7ft (6m)
    Minimum Cut Length:    55.55mm (2.19in)
    Operating Voltage:    24 VDC
    Power Consumption:    75 Watts
    Rated Life (L70):    30000 Hours
    Series:    COB
    Strip Width:    12mm (0.47in)
    Wattage per Foot:    4.6 W/ft (15 W/m)
    Wire Gauge:    22 AWG
    Wire Length:    1.5 ft (0.5 m)
